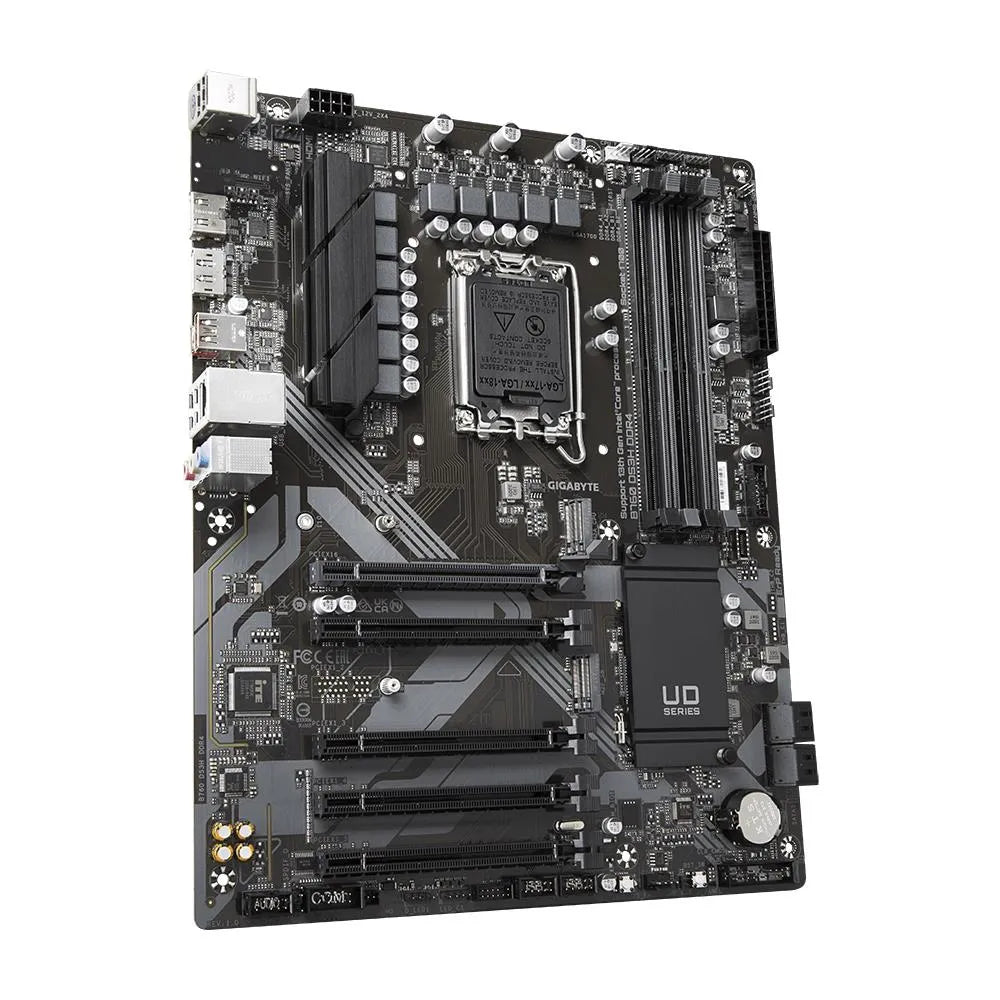

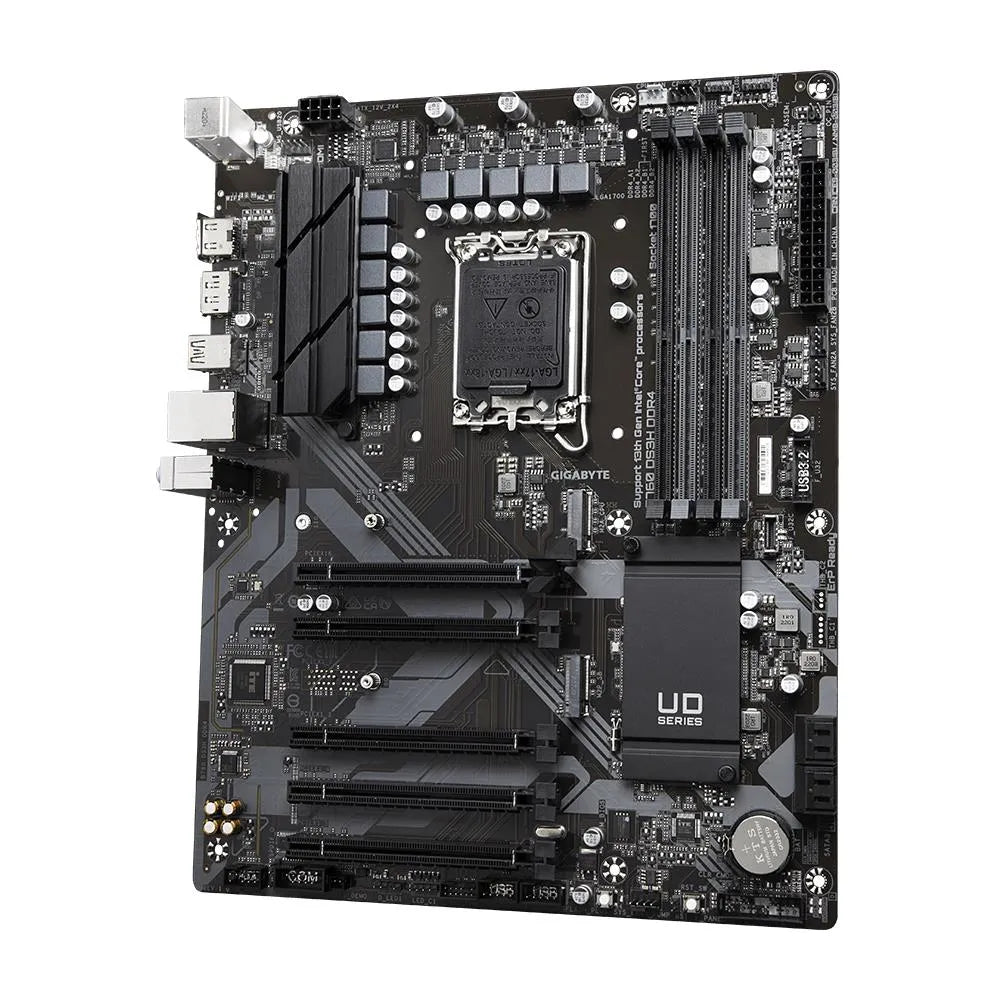

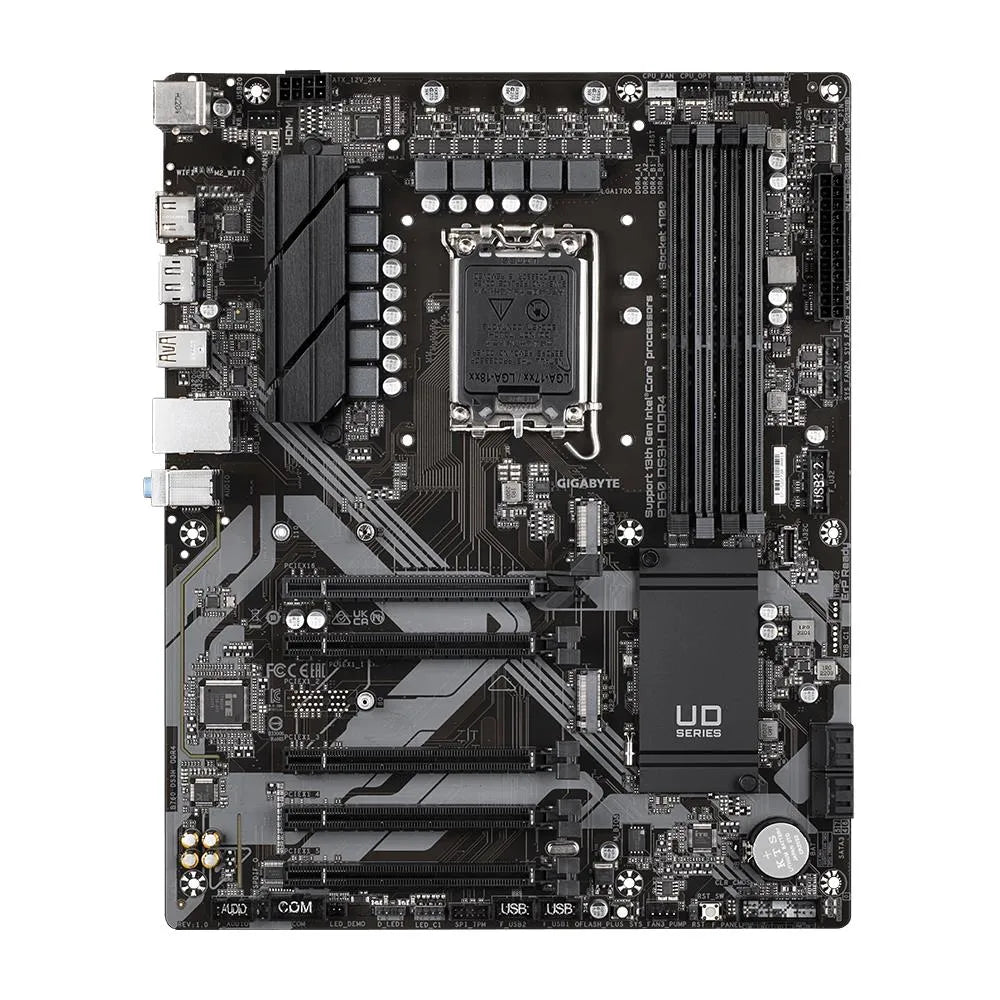

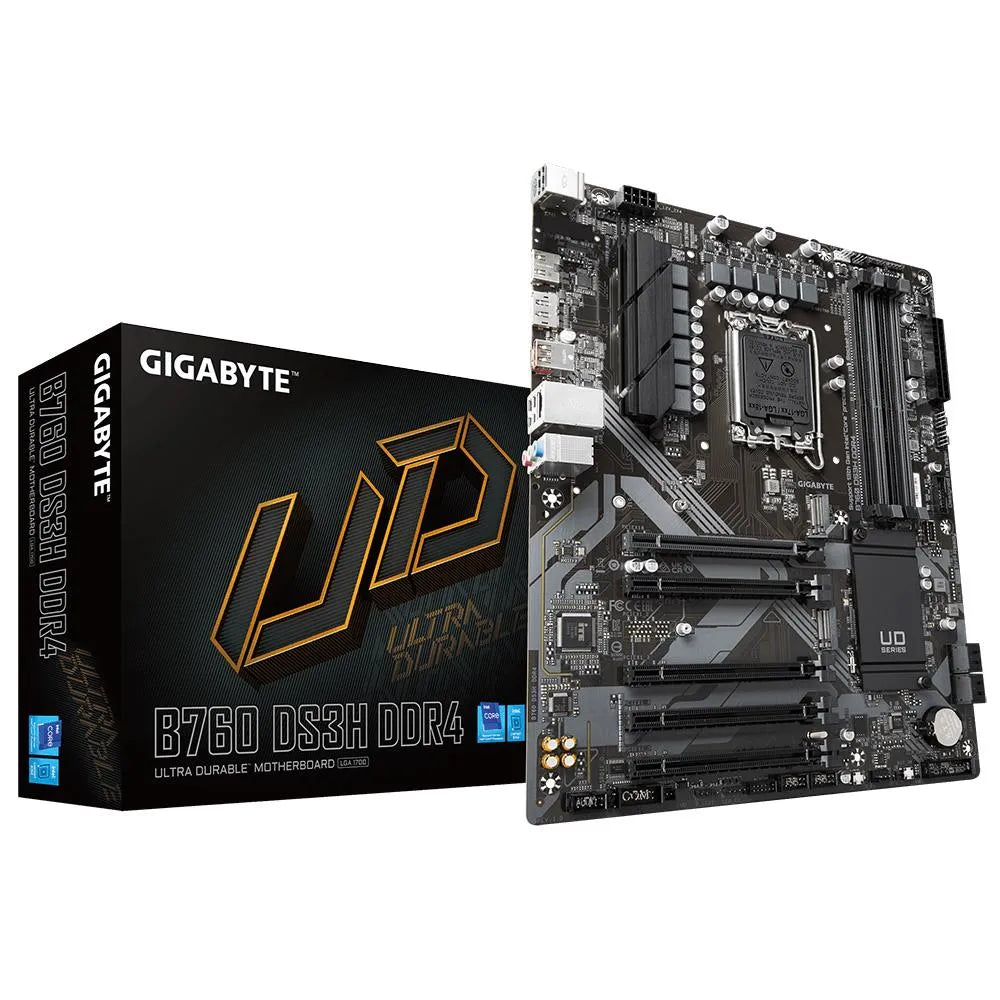

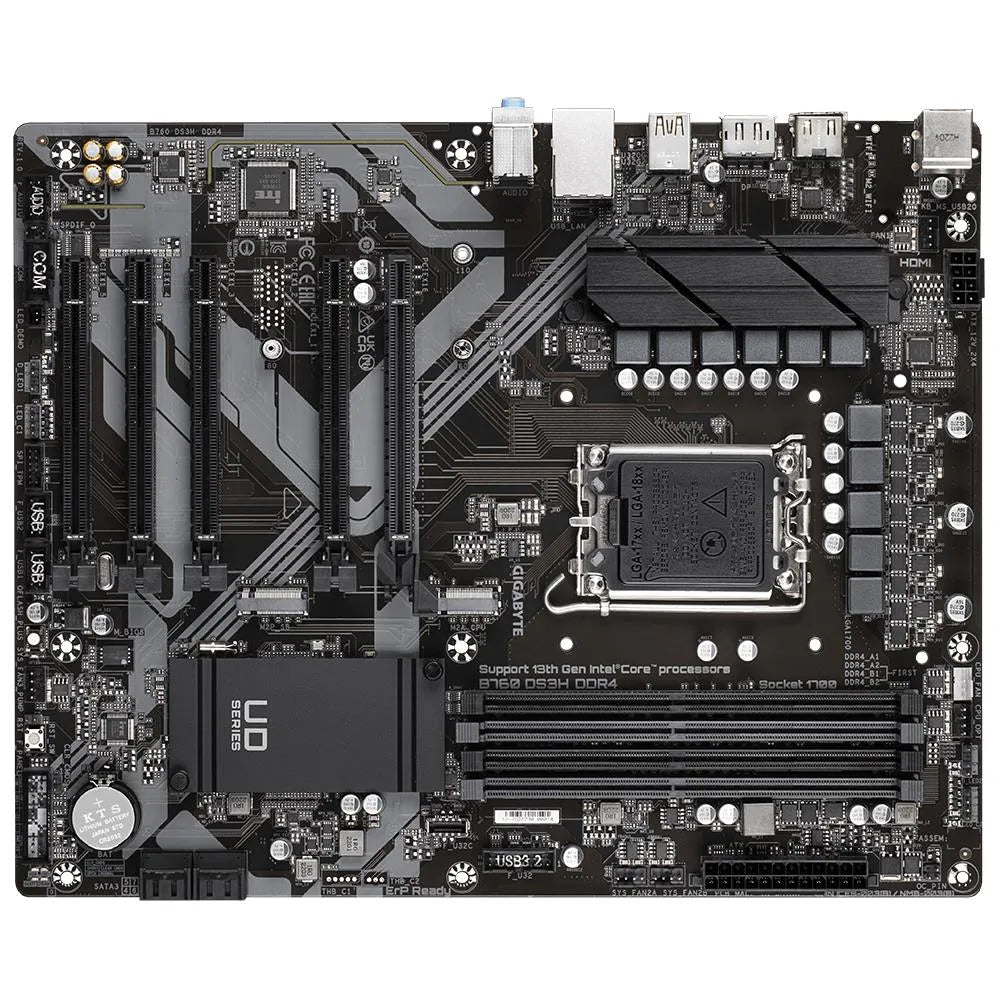

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|ATX|Memory DDR4|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760DS3HDDR4
Regular price
€117,84
Regular price
Sale price
€117,84
Unit price
per
Tax included.
Couldn't load pickup availability
Brand:
GIGABYTE
Pieejamība:
In stock
SKU:
B760DS3HDDR4
Cena bez PVN 21%: €97,39
Regular price
€117,84
Regular price
Sale price
€117,84
Specifikācija
| Vienības kastes platums | 0.275 kg |
| Vienības kastes garums | 0.34 kg |
| Vienības kastes augstums | 0.085 kg |
| Modelis | B760 DS3H DDR4 year(s) |
| Units per Shipping Box | 1 year(s) |
| Unit Calculated Volume | 0.007947 cubm |
| Unit Calculated Weight | 1.2 kg |
| Summary | GIGABYTE B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C kg |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold channels |
| Processor manufacturer | Intel GB |
| Processor socket | LGA 1700 GB |
| Supported processor sockets | LGA 1700 GB |
| ECC ?ompatibility | ECC & Non-ECC GB |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz |
| Supported memory types | DDR4-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported pixels |
| 12V power connector | Jā pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of SATA III connectors | 4 pixels |
| RGB LED pin header | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 2 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 pixels |
| DisplayPort version | 1.2 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| Microphone in | Jā pixels |
| Ethernet interface type | Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | Intel B760 Express channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | ATX channels |
| Number of M.2 (M) slots | 2 pixels |
| BIOS memory size | 128 Mbit |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 pixels |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 pixels |
| BIOS type | UEFI AMI Mbit |
| PS/2 ports quantity | 1 pixels |
| DirectX version | 12.0 MHz |
| Front panel connector | Jā pixels |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling channels |
| ACPI version | 5.0 pixels |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| Bundled software | Norton Internet Security mm |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 6 MHz |
| Clear CMOS jumper | Jā Mbit |
| PCI Express x16 slots | 5 pixels |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 4 pixels |
| Wi-Fi | Nē pixels |
| Depth | 244 mm |
| Width | 305 mm |
| Cables included | SATA mm |
| Maximum internal memory supported by processor | 128 GB |
| Supported memory module capacities | 12GB/16GB/1GB/2GB/32GB/4GB/8GB MHz |
| HDCP | Jā MHz |
| Maximum resolution | 4096 x 2304 pixels |
| S/PDIF out connector | Jā pixels |
| Serial port headers | 1 pixels |
| Total number of SATA connectors | 4 pixels |
| DisplayPorts quantity | 1 pixels |
| Headphone outputs | 3 pixels |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 channels |
| Desktop Management Interface (DMI) version | 2.7 Mbit |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) Mbit |
| Battery type | CR2032 Mbit |
| Battery weight | 3 g |
| Country of origin | China g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 g |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1311 g |
| Package width | 335 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Height | 35 mm |
| Batteries included | Jā mm |
| Warranty period | 3 year(s) |
| HDMI version | 2.0 pixels |
| USB connector type | USB Type-A/USB Type-C pixels |
Apraksts
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：Rear USB-C 20Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
