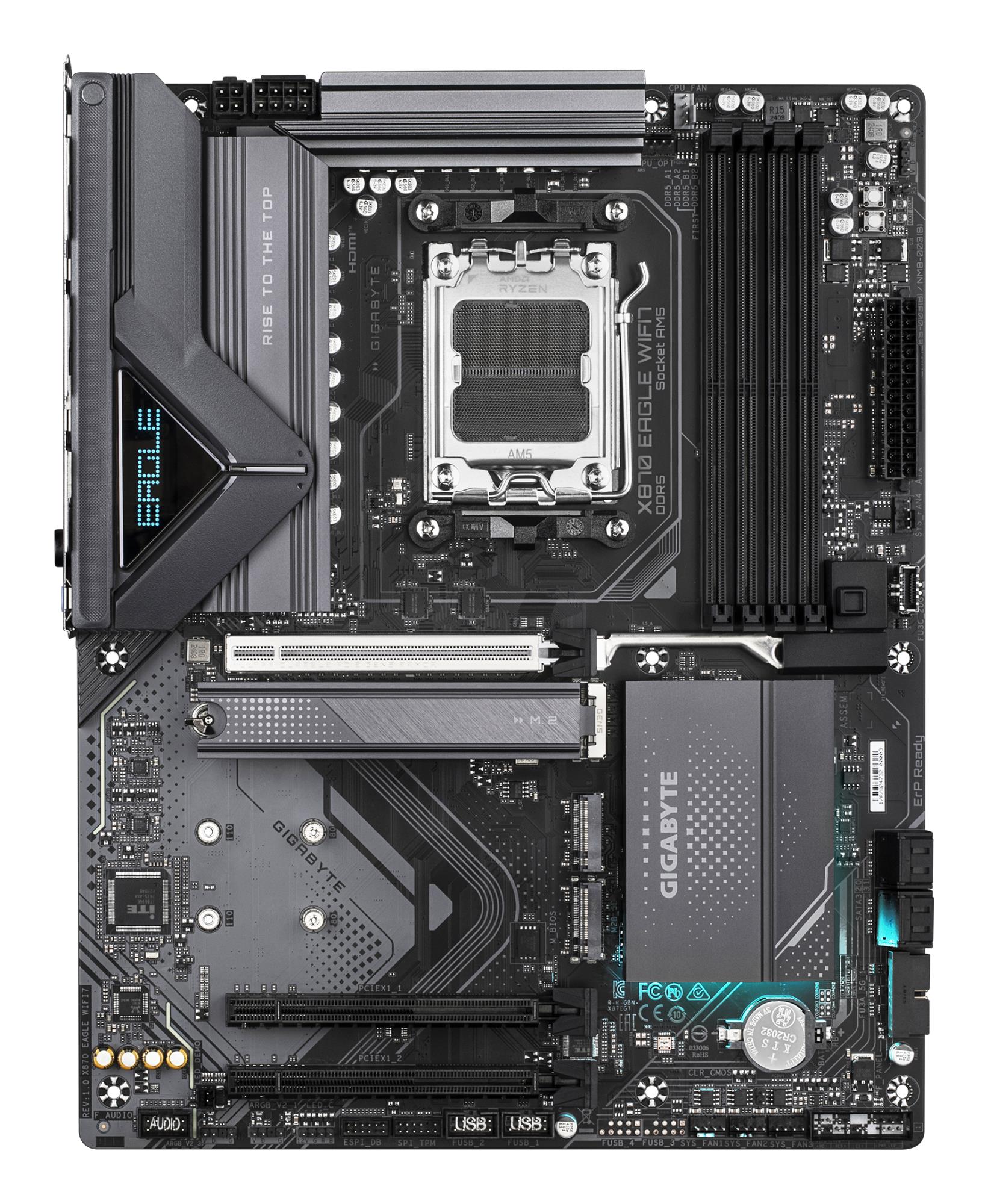

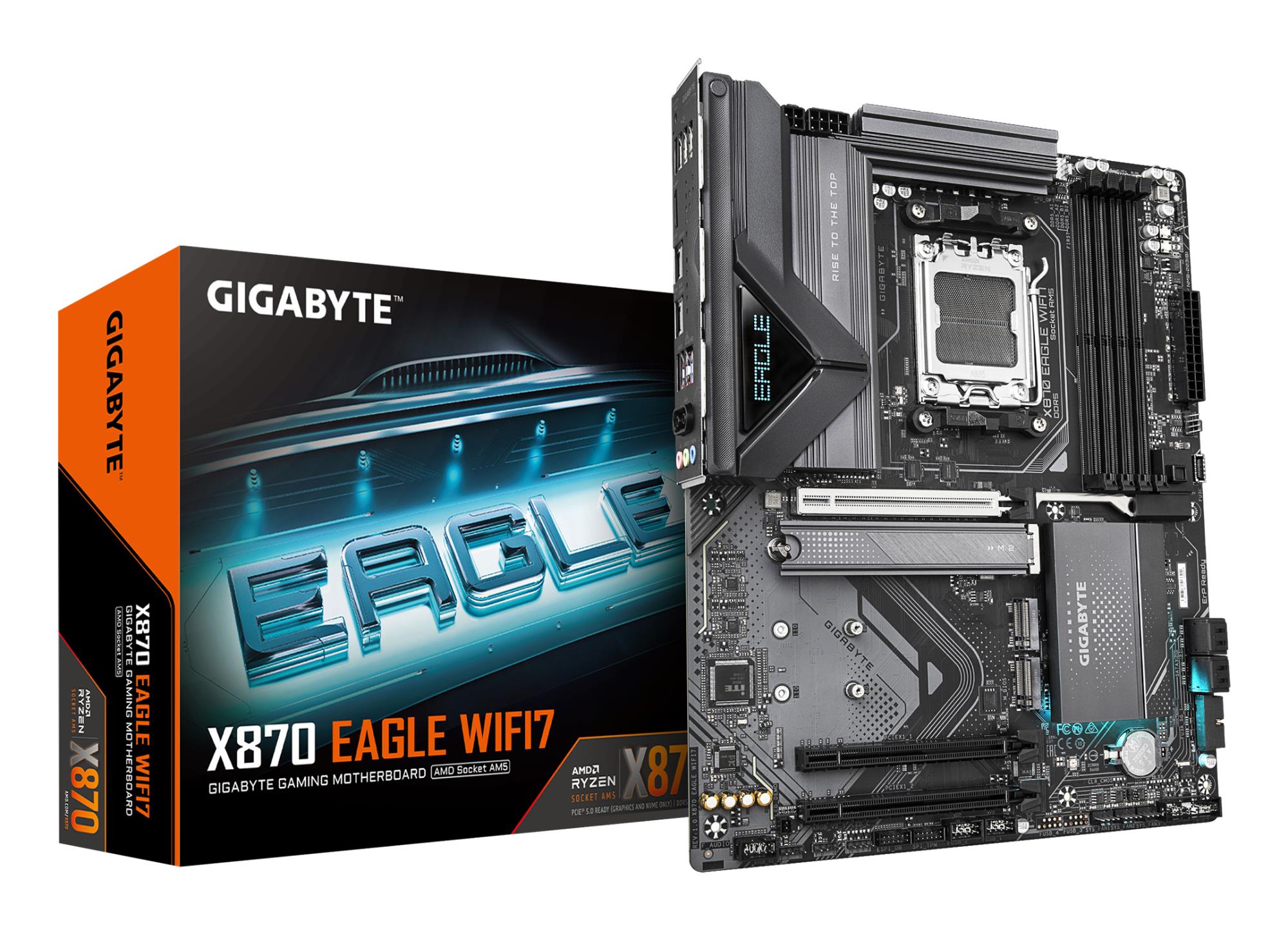

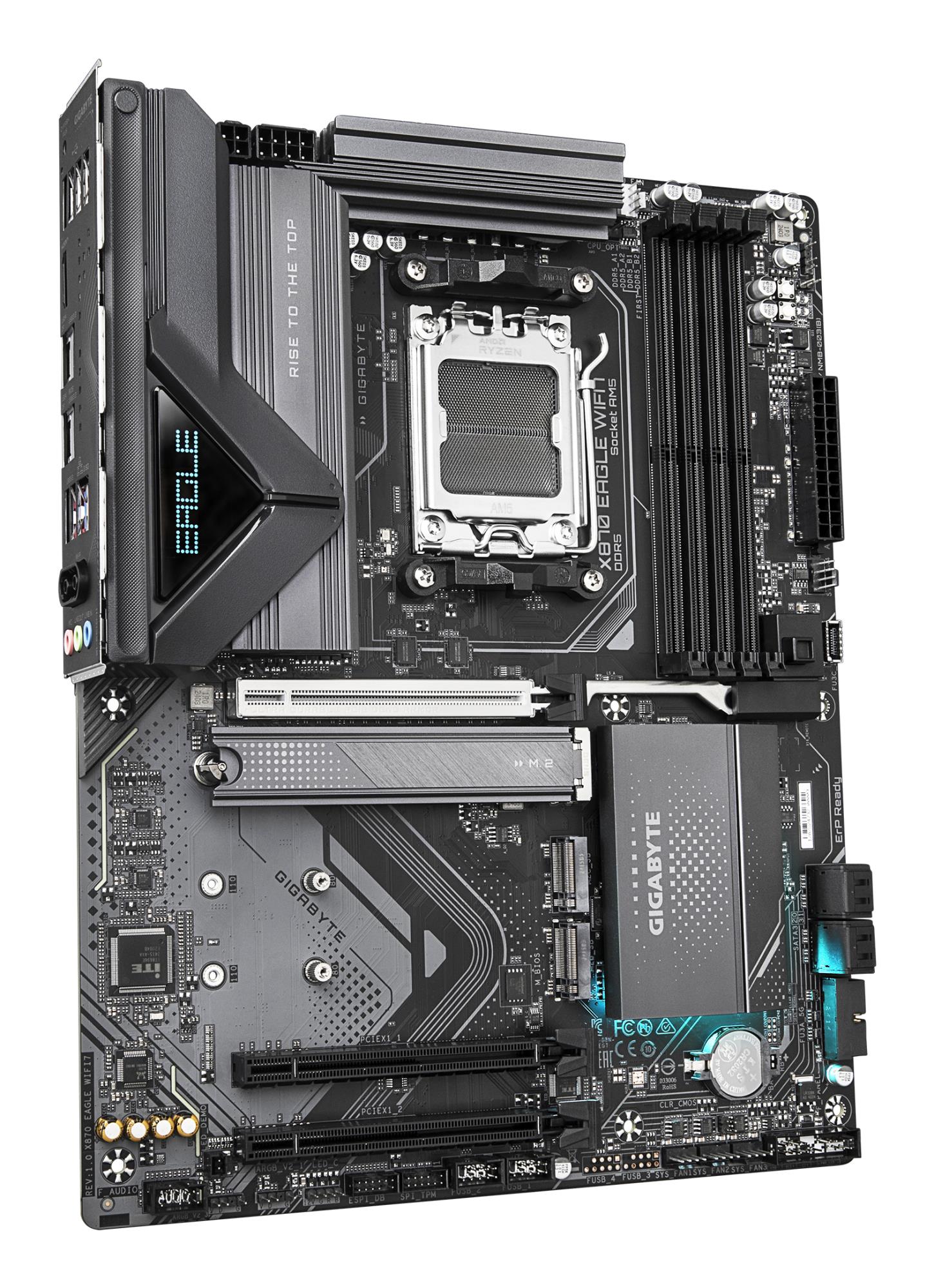

Mainboard|GIGABYTE|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|4xUSB 2.0|4xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|X870EAGLEWIFI71.1
Regular price
€246,79
Regular price
Sale price
€246,79
Unit price
per
Tax included.
Couldn't load pickup availability
Brand:
GIGABYTE
Pieejamība:
In stock
SKU:
X870 EAGLE WIFI7 1.1
Cena bez PVN 21%: €203,96
Regular price
€246,79
Regular price
Sale price
€246,79
Specifikācija
| Vienības kastes platums | 0.27 kg |
| Vienības kastes garums | 0.34 kg |
| Vienības kastes augstums | 0.08 kg |
| Modelis | X870 EAGLE WIFI7 (1.1) g |
| Bluetooth | Jā MHz |
| Bluetooth versija | 5.4 MHz |
| Units per Shipping Box | 1 g |
| Unit Calculated Volume | 0.007344 cubm |
| Unit Calculated Weight | 1.792 kg |
| Summary | GIGABYTE X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD kg |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series channels |
| Processor manufacturer | AMD GB |
| Processor socket | Socket AM5 GB |
| Supported processor sockets | Socket AM5 GB |
| ECC ?ompatibility | Non-ECC GB |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| On-board graphics card | Nē MHz |
| Parallel processing technology support | Not supported MHz |
| 12V power connector | Jā MHz |
| ATX Power connector (24-pin) | Jā MHz |
| CPU fan connector | Jā MHz |
| EPS power connector (8-pin) | Jā MHz |
| Front panel audio connector | Jā MHz |
| Number of chassis fan connectors | 4 MHz |
| Number of SATA III connectors | 4 MHz |
| Peripheral (Molex) power connectors (4-pin) | 1 MHz |
| RGB LED pin header | Jā MHz |
| TPM connector | Jā MHz |
| USB 2.0 connectors | 2 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 MHz |
| DisplayPort version | 1.4 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 MHz |
| WiFi-AP antenna jack | 2 MHz |
| Ethernet interface type | 2.5 Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) MHz |
| Wi-Fi standards | Wi-Fi 7 (802.11be) MHz |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | AMD X870 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | ATX channels |
| Number of M.2 (M) slots | 3 MHz |
| PCI Express x16 (Gen 5.x) slots | 1 MHz |
| BIOS memory size | 256 Mbit |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 MHz |
| BIOS type | UEFI AMI Mbit |
| Clear CMOS button | Jā Mbit |
| LAN controller | Realtek RTL8125 MHz |
| DirectX version | 12.0 MHz |
| Front panel connector | Jā MHz |
| PC health monitoring | Fan/Temperature/Voltage channels |
| PCI Express x16 (Gen 3.x) slots | 2 MHz |
| ACPI version | 5.0 MHz |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software mm |
| Screws included | Jā mm |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 7 MHz |
| Clear CMOS jumper | Jā Mbit |
| HDMI ports quantity | 1 MHz |
| USB 2.0 ports quantity | 4 MHz |
| Wi-Fi | Jā MHz |
| Depth | 244 mm |
| Width | 305 mm |
| Maximum internal memory supported by processor | 256 GB |
| Supported memory module capacities | 16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB MHz |
| Headphone outputs | 1 MHz |
| Product colour | Black channels |
| Windows operating systems supported | Windows 11 x64 channels |
| Desktop Management Interface (DMI) version | 2.7 Mbit |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) Mbit |
| Battery type | CR2032 Mbit |
| Battery weight | 3 g |
| Country of origin | China g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 g |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1940 g |
| Package width | 335 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Height | 35 mm |
| Batteries included | Jā mm |
| Warranty period | 3 year(s) |
| HDMI version | 2.1 MHz |
| Weight | 1740 g |
| Maximum internal memory per slot | 64 GB |
| Number of CPU fan connectors | 2 MHz |
| Number of EPS power connectors (8-pin) | 1 MHz |
| Number of RGB LED pin headers | 4 MHz |
| Number of water pump connectors | 1 MHz |
| 1st M.2 highest PCI Express generation | 5.0 MHz |
| 1st M.2 largest key size | 25110 MHz |
| 2nd M.2 highest PCI Express generation | 4.0 MHz |
| 2nd M.2 largest key size | 25110 MHz |
| WLAN controller model | MediaTek MT7925 MHz |
| Antenna included | Jā mm |
| USB 3.2 Gen 2x2 connectors | 1 MHz |
| 3rd M.2 highest PCI Express generation | 4.0 MHz |
| 3rd M.2 largest key size | 25110 MHz |
| USB4 Gen 2x2 ports quantity | 2 MHz |
Apraksts
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5：4DIMMs with AMD EXPO Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard

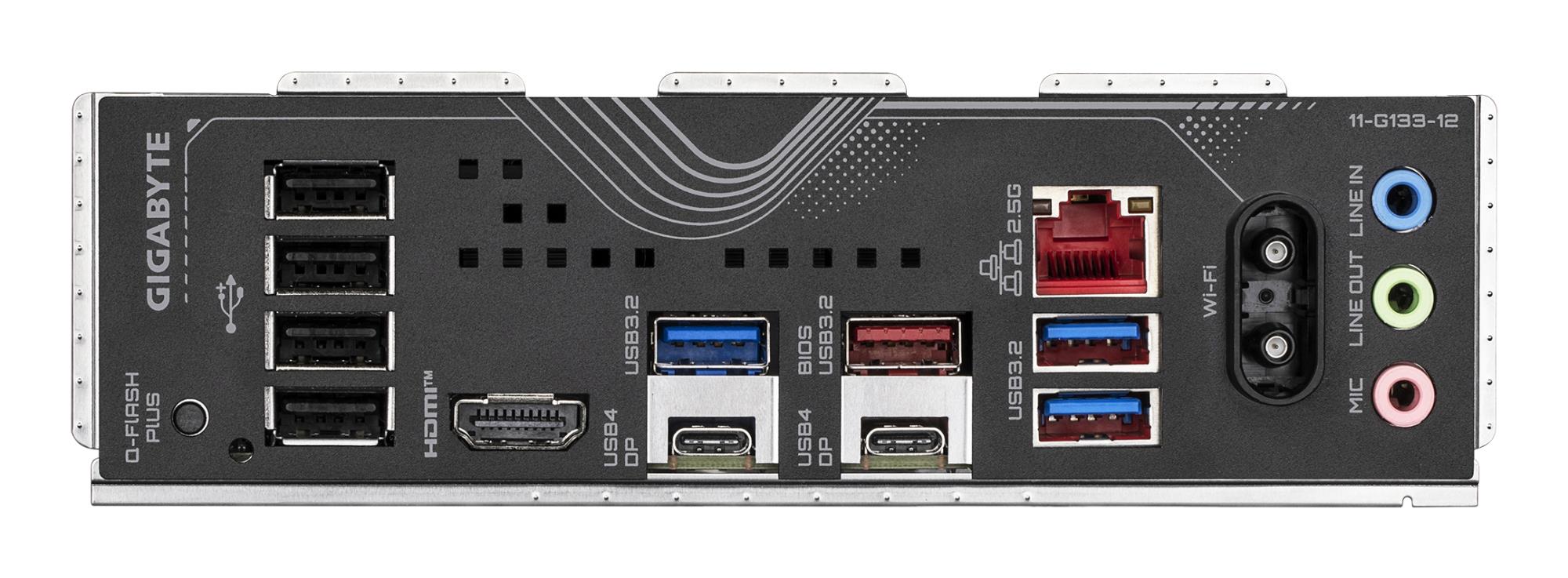

- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
