Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|3xPCI-Express 3.0 16x|3xM.2|2xHDMI|1xDisplayPort|6xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|B650EAGLEAX1.1
Regular price
€146,09
Regular price
Sale price
€146,09
Unit price
per
Tax included.
Couldn't load pickup availability
Brand:
GIGABYTE
Pieejamība:
In stock
SKU:
B650 EAGLE AX 1.1
Cena bez PVN 21%: €120,74
Regular price
€146,09
Regular price
Sale price
€146,09
Specifikācija
| Vienības kastes platums | 0.0456 kg |
| Vienības kastes garums | 0.57 kg |
| Vienības kastes augstums | 0.38 kg |
| Modelis | B650 EAGLE AX 1.1 year(s) |
| Bluetooth | Jā pixels |
| Bluetooth versija | 5.3 pixels |
| Units per Shipping Box | 8 year(s) |
| Unit Calculated Volume | 0.009882 cubm |
| Unit Calculated Weight | 1.98 kg |
| Summary | GIGABYTE B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) kg |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series channels |
| Processor manufacturer | AMD channels |
| Processor socket | Socket AM5 channels |
| Supported processor sockets | Socket AM5 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory clock speeds | 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported pixels |
| 12V power connector | Jā pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of chassis fan connectors | 3 pixels |
| Number of SATA III connectors | 4 pixels |
| RGB LED pin header | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 3 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 pixels |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 pixels |
| DisplayPort version | 1.4 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| Line-in | Jā pixels |
| Microphone in | Jā pixels |
| WiFi-AP antenna jack | 2 pixels |
| Ethernet interface type | Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) pixels |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) pixels |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | AMD B650 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | ATX channels |
| Power source type | ATX channels |
| Number of M.2 (M) slots | 3 pixels |
| PCI Express x16 (Gen 4.x) slots | 1 pixels |
| BIOS memory size | 256 Mbit |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 pixels |
| BIOS type | UEFI AMI Mbit |
| PS/2 ports quantity | 1 pixels |
| LAN controller | Realtek RTL8111H pixels |
| DirectX version | 12.0 MHz |
| Discrete graphics support | Jā MHz |
| Front panel connector | Jā pixels |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling channels |
| PCI Express x16 (Gen 3.x) slots | 3 pixels |
| ACPI version | 5.0 pixels |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software mm |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 pixels |
| Screws included | Jā mm |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 7 MHz |
| Clear CMOS jumper | Jā Mbit |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 6 pixels |
| Wi-Fi | Jā pixels |
| Depth | 244 mm |
| Width | 305 mm |
| HDCP | Jā MHz |
| Maximum resolution | 4096 x 2160 pixels |
| Serial port headers | 1 pixels |
| DisplayPorts quantity | 1 pixels |
| Headphone outputs | 1 pixels |
| Product colour | Brown channels |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 channels |
| Desktop Management Interface (DMI) version | 2.7 Mbit |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) Mbit |
| Battery type | CR2032 Mbit |
| Battery weight | 3 g |
| Country of origin | China g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 g |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1943 g |
| Package width | 335 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Height | 35 mm |
| Batteries included | Jā mm |
| Warranty period | 3 year(s) |
| HDMI version | 2.1 pixels |
| Maximum internal memory per slot | 64 GB |
| Number of CPU fan connectors | 2 pixels |
| Number of RGB LED pin headers | 4 pixels |
| Number of water pump connectors | 2 pixels |
| 1st M.2 highest PCI Express generation | 5.0 pixels |
| 1st M.2 largest key size | 25110 pixels |
| 2nd M.2 highest PCI Express generation | 4.0 pixels |
| 2nd M.2 largest key size | 22110 pixels |
| WLAN controller model | Realtek RTL8852CE pixels |
| Antenna included | Jā mm |
| 3rd M.2 highest PCI Express generation | 4.0 pixels |
| 3rd M.2 largest key size | 22110 pixels |
Apraksts
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
- Unparalleled Performance：12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN

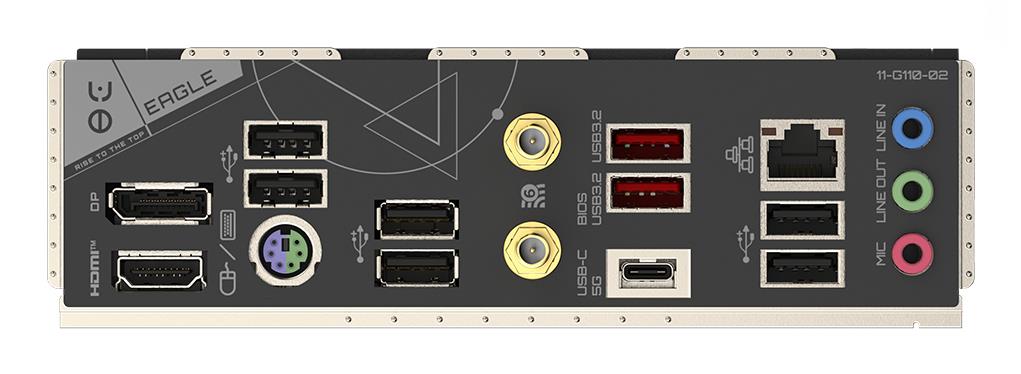

- Extended Connectivity：DP, HDMI, Rear USB 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
