Mainboard|ASUS|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|PRIMEB860M-A-CSM
Regular price
€176,43
Regular price
Sale price
€176,43
Unit price
per
Tax included.
Couldn't load pickup availability
Brand:
ASUS
Pieejamība:
Out of stock
SKU:
PRIME B860M-A-CSM
Cena bez PVN 21%: €145,81
Regular price
€176,43
Regular price
Sale price
€176,43
Specifikācija
| Vienības kastes platums | 0.275 kg |
| Vienības kastes garums | 0.28 kg |
| Vienības kastes augstums | 0.07 kg |
| Modelis | PRIME B860M-A-CSM g |
| Units per Shipping Box | 10 g |
| Unit Calculated Volume | 0.006102 cubm |
| Unit Calculated Weight | 1.42 kg |
| Summary | ASUS PRIME B860M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel kg |
| Compatible processor series | Intel Core Ultra (Series 2) channels |
| Processor manufacturer | Intel channels |
| Processor socket | LGA 1851 (Socket V1) channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 8666 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported MHz |
| 12V power connector | Jā MHz |
| ATX Power connector (24-pin) | Jā MHz |
| CPU fan connector | Jā MHz |
| EPS power connector (8-pin) | Jā MHz |
| Front panel audio connector | Jā MHz |
| Number of chassis fan connectors | 3 MHz |
| Number of COM connectors | 1 MHz |
| Number of SATA III connectors | 4 MHz |
| TPM connector | Jā MHz |
| USB 2.0 connectors | 1 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| Line-in | Jā MHz |
| Microphone in | Jā MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 MHz |
| Ethernet interface type | 2.5 Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | Intel B860 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | micro ATX channels |
| PCI Express x16 (Gen 4.x) slots | 1 MHz |
| BIOS memory size | 256 Mbit |
| Chassis intrusion connector | Jā MHz |
| Thunderbolt headers | 1 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 MHz |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 MHz |
| BIOS type | UEFI AMI Mbit |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 6 MHz |
| PCI Express x1 (Gen 4.x) slots | 1 MHz |
| HDMI ports quantity | 1 MHz |
| USB 2.0 ports quantity | 4 MHz |
| Wi-Fi | Nē MHz |
| Depth | 244 mm |
| Width | 244 mm |
| S/PDIF out connector | Jā MHz |
| DisplayPorts quantity | 2 MHz |
| Product colour | Multicolour channels |
| Windows operating systems supported | Windows 10 x64/Windows 11 channels |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1360 g |
| Package width | 275 mm |
| Height | 50 mm |
| Weight | 815 g |
| Number of CPU fan connectors | 1 MHz |
Apraksts

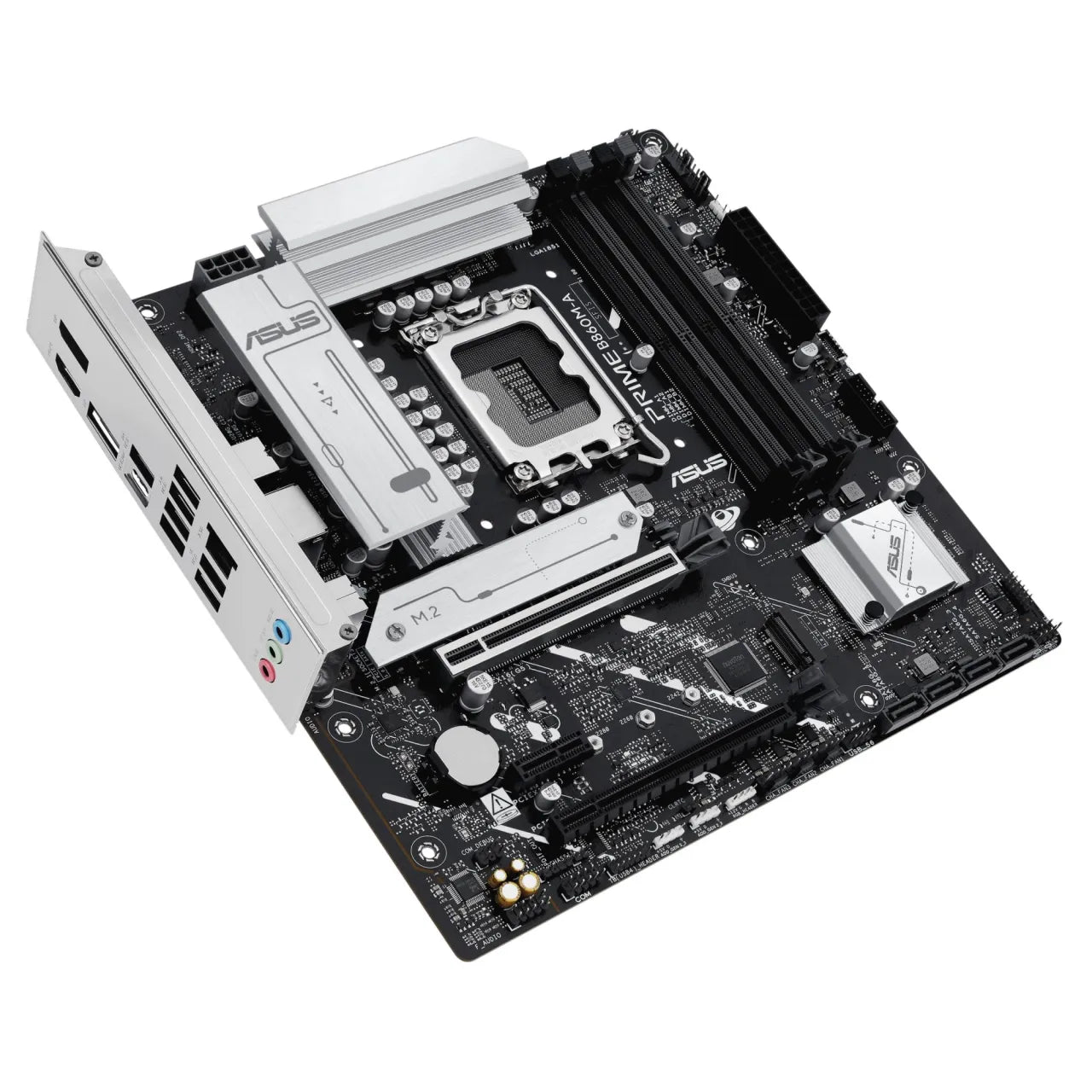

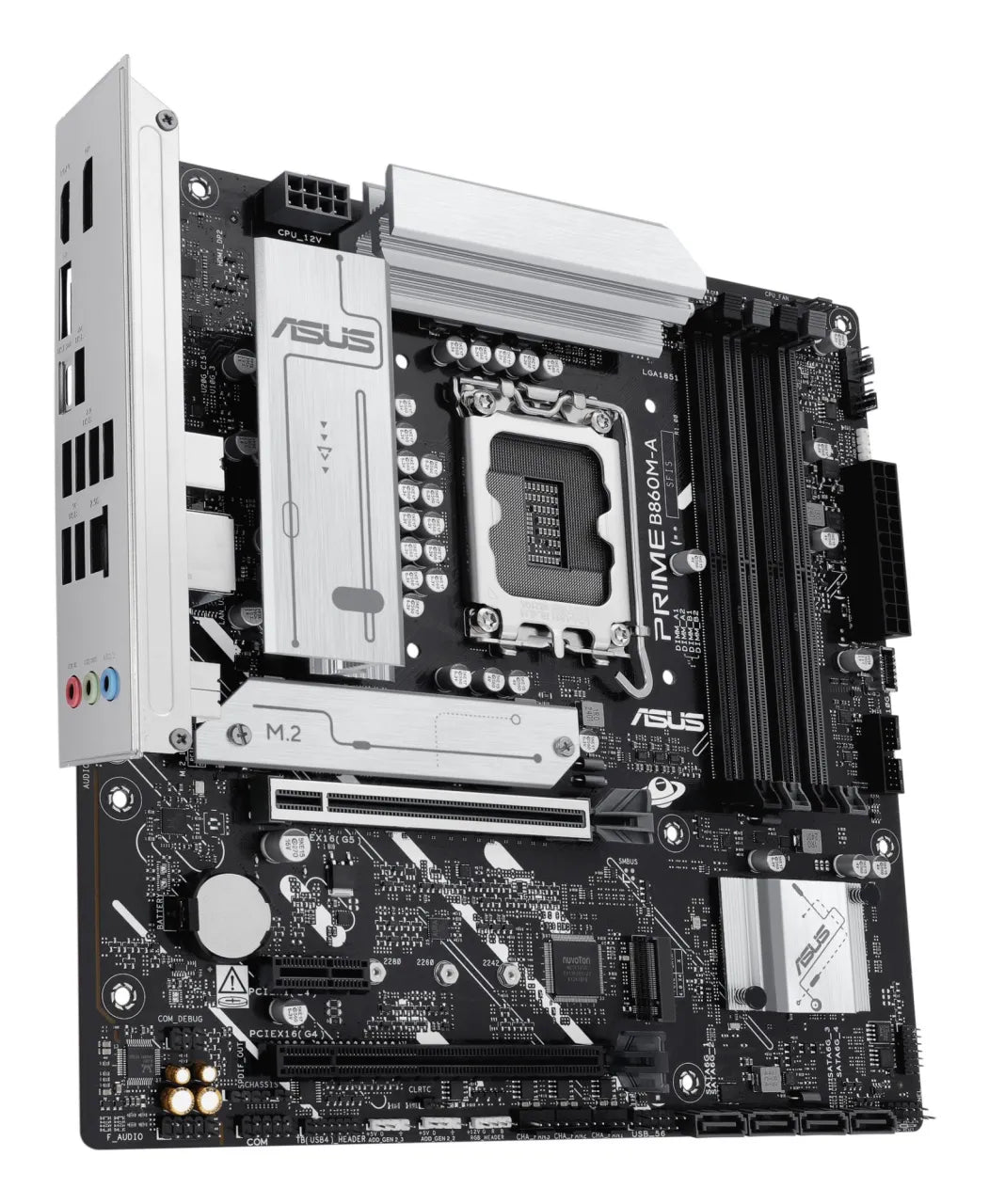

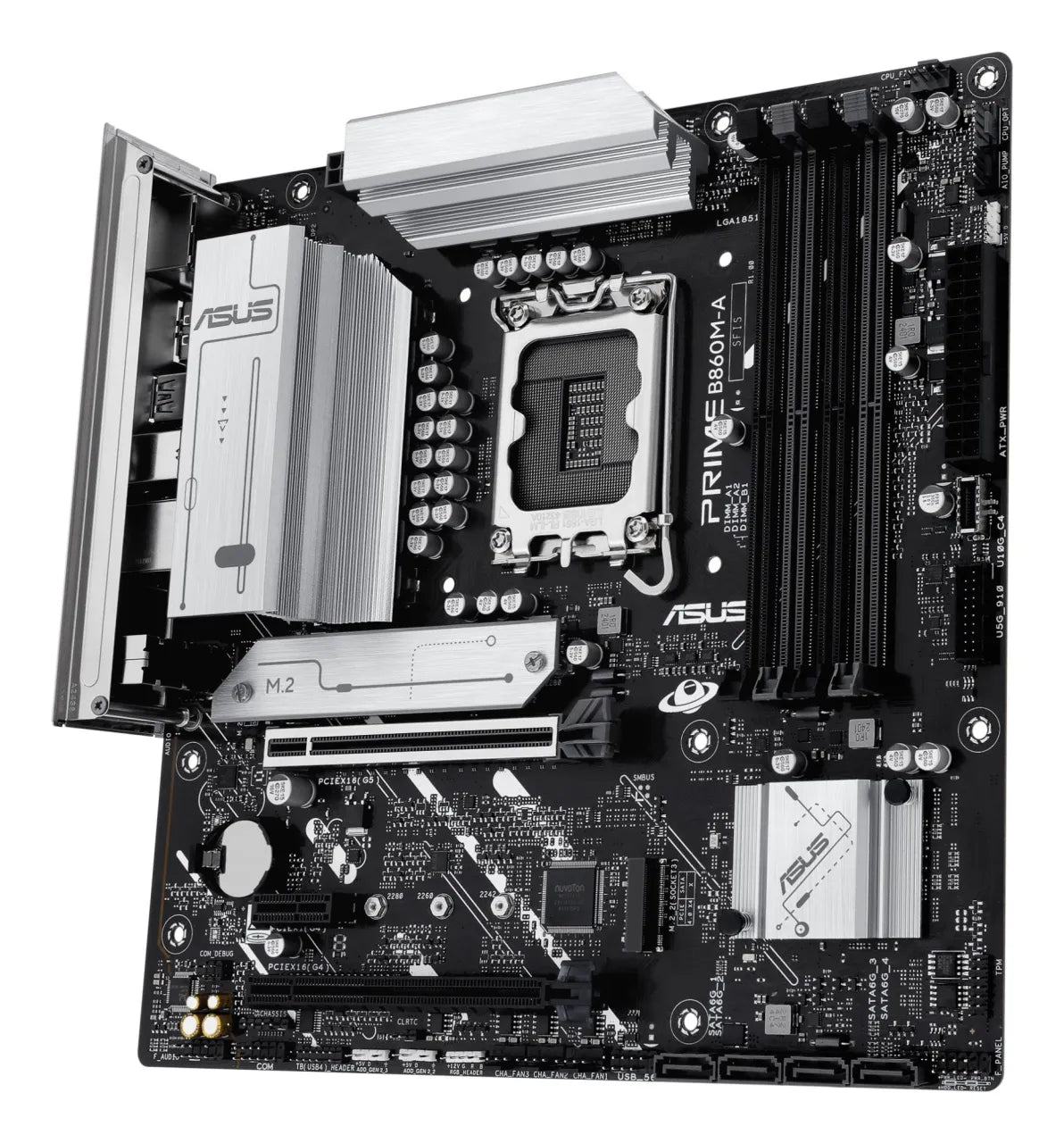

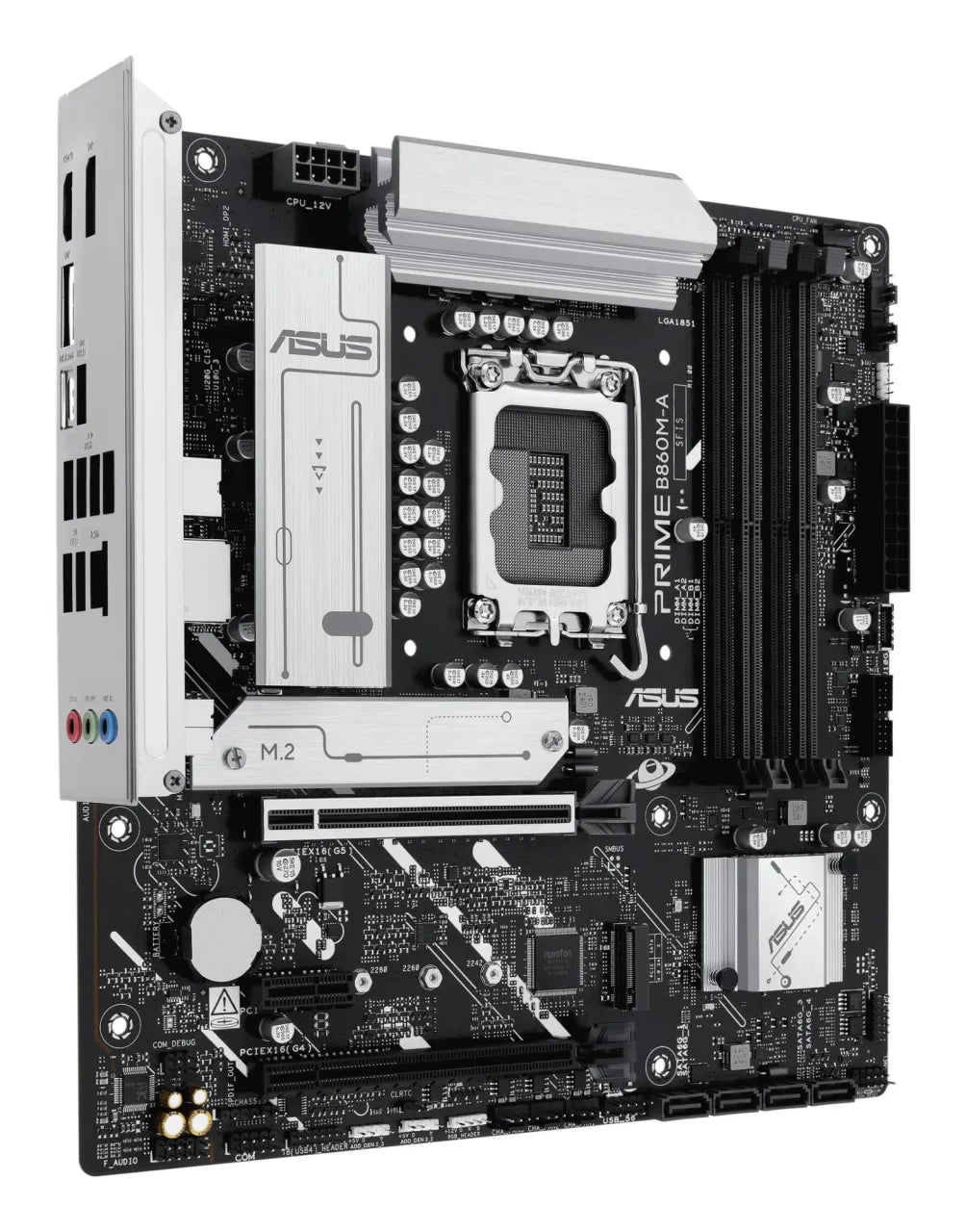

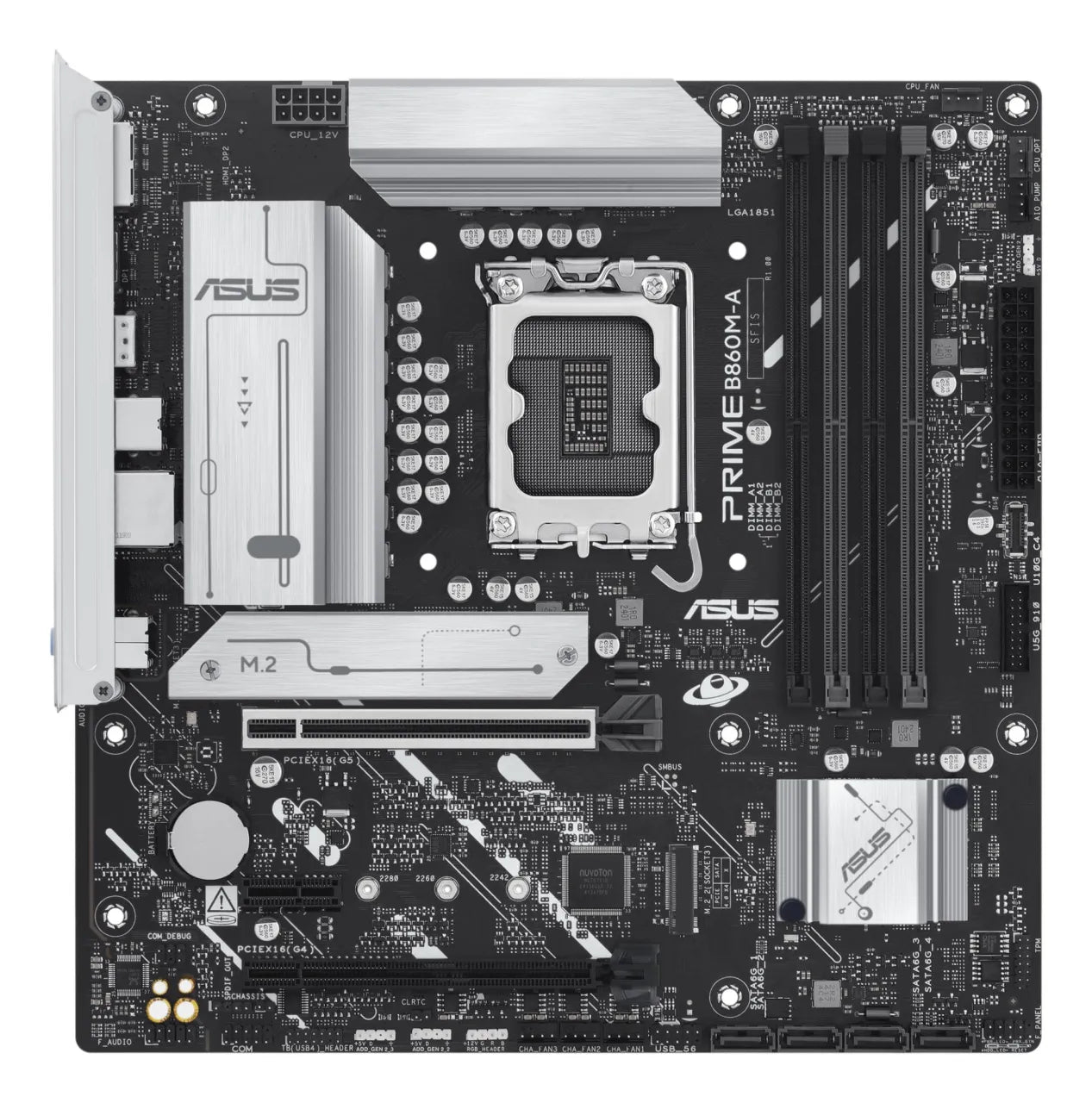

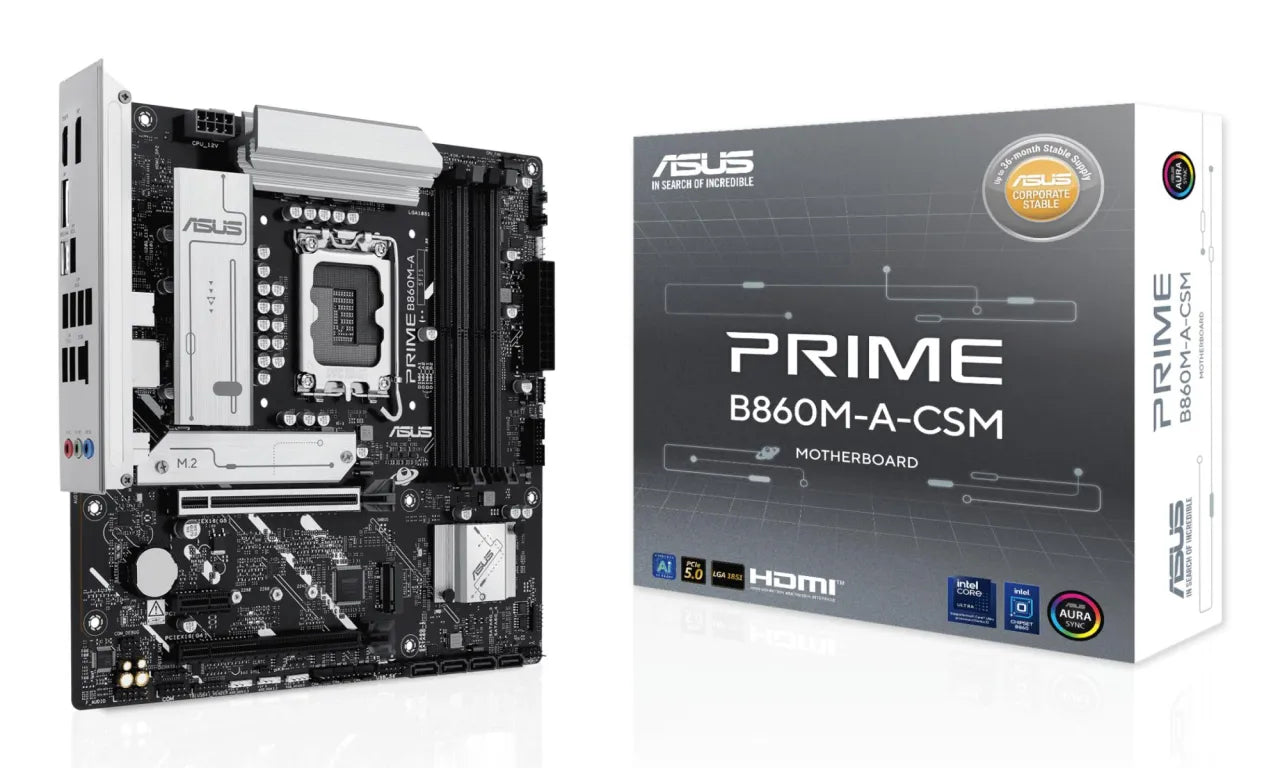

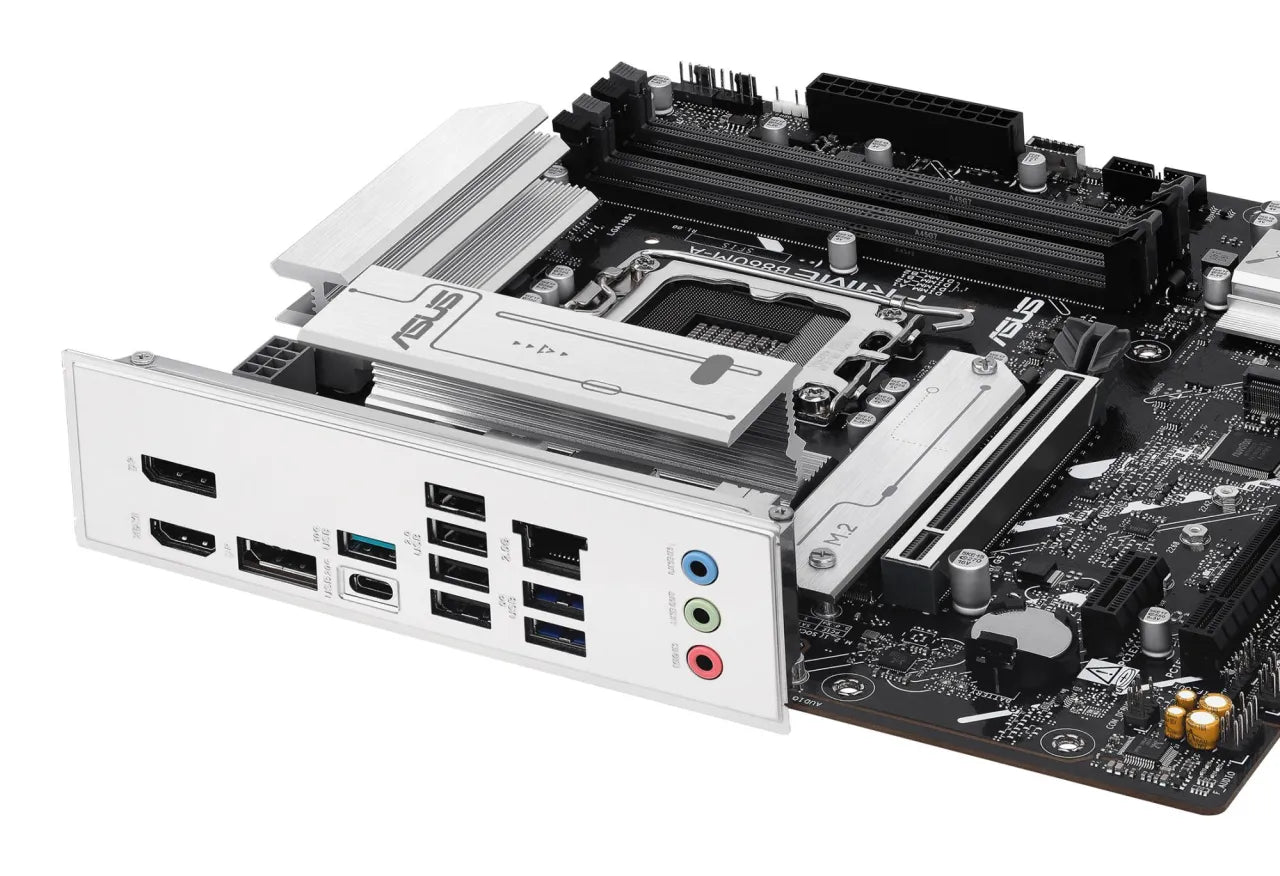

PRIME B860M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
