Mainboard|ASUS|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xVGA|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB650M-AII-CSM
Couldn't load pickup availability
Cena bez PVN 21%: €117,48
Specifikācija
| Vienības kastes platums | 0.275 kg |
| Vienības kastes garums | 0.28 kg |
| Vienības kastes augstums | 0.07 kg |
| Modelis | PRIME B650M-A II-CSM mm |
| Units per Shipping Box | 10 mm |
| Unit Calculated Volume | 0.006187 cubm |
| Unit Calculated Weight | 1.35 kg |
| Summary | ASUS PRIME B650M-A II-CSM. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD kg |
| Compatible processor series | AMD Ryzen 7000 Series channels |
| Processor manufacturer | AMD channels |
| Processor socket | Socket AM5 channels |
| Supported processor sockets | Socket AM5 channels |
| ECC ?ompatibility | ECC & Non-ECC channels |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 6400 MHz |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| On-board graphics card | Nē MHz |
| Parallel processing technology support | Not supported MHz |
| 12V power connector | Jā MHz |
| ATX Power connector (24-pin) | Jā MHz |
| CPU fan connector | Jā MHz |
| Front panel audio connector | Jā MHz |
| Number of chassis fan connectors | 3 MHz |
| Number of COM connectors | 1 MHz |
| Number of SATA III connectors | 4 MHz |
| RGB LED pin header | Jā MHz |
| TPM connector | Jā MHz |
| USB 2.0 connectors | 2 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| Line-in | Jā MHz |
| Microphone in | Jā MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 MHz |
| Ethernet interface type | 2.5 Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | AMD B650 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | micro ATX channels |
| Number of M.2 (M) slots | 2 MHz |
| BIOS memory size | 256 Mbit |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 MHz |
| BIOS type | UEFI AMI Mbit |
| Clear CMOS button | Jā Mbit |
| PS/2 ports quantity | 1 MHz |
| Front panel connector | Jā MHz |
| PCI Express x16 (Gen 3.x) slots | 3 MHz |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 6 MHz |
| HDMI ports quantity | 1 MHz |
| USB 2.0 ports quantity | 4 MHz |
| Wi-Fi | Nē MHz |
| Depth | 244 mm |
| Width | 244 mm |
| Cables included | SATA mm |
| DisplayPorts quantity | 1 MHz |
| Headphone outputs | 1 MHz |
| Product colour | Black channels |
| Windows operating systems supported | Windows 10 x64/Windows 11 channels |
| Audio connector | Jā MHz |
Apraksts

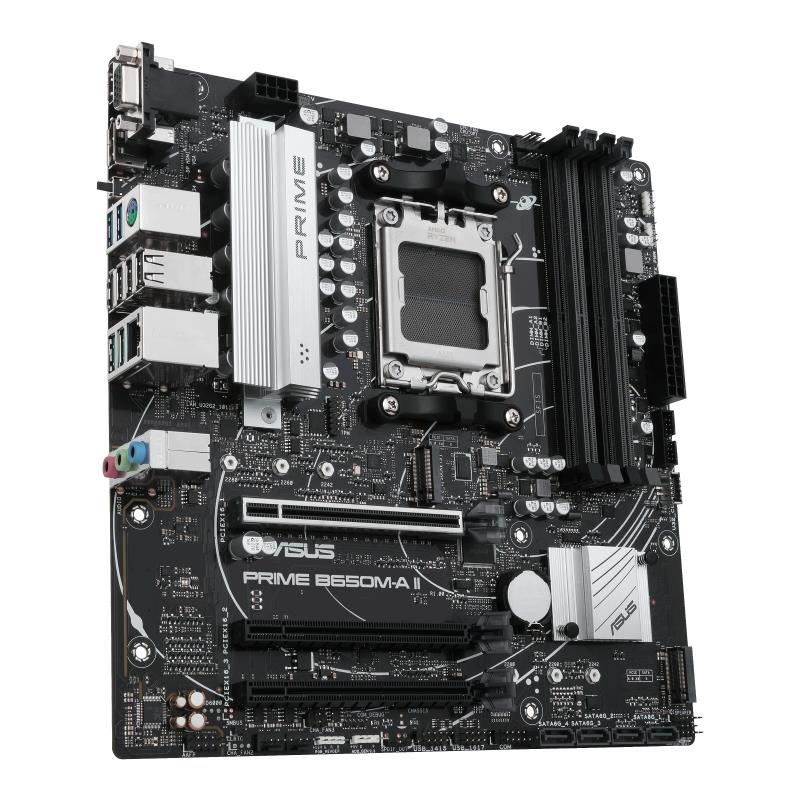

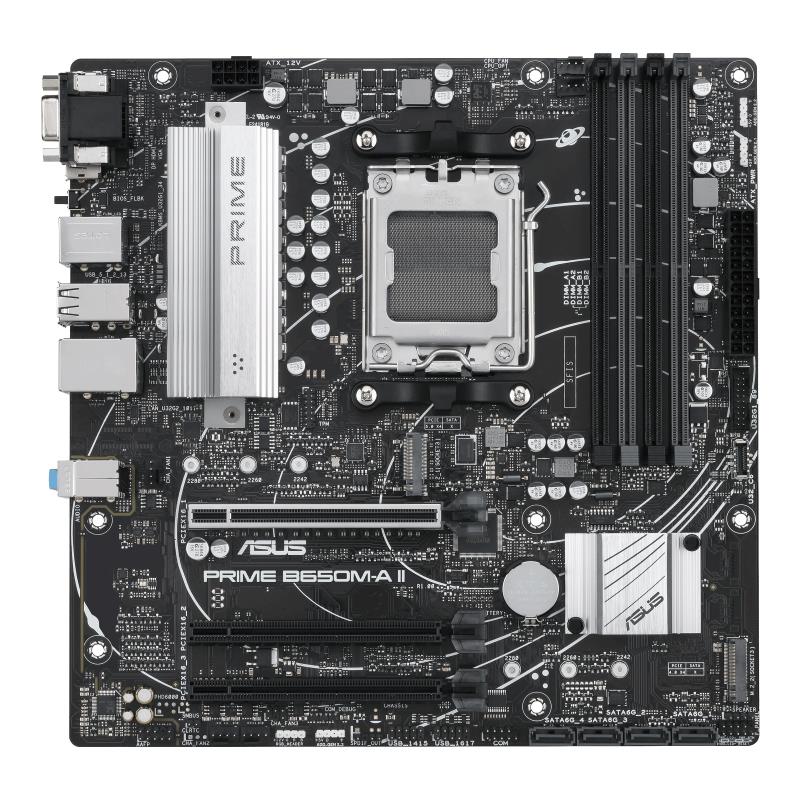

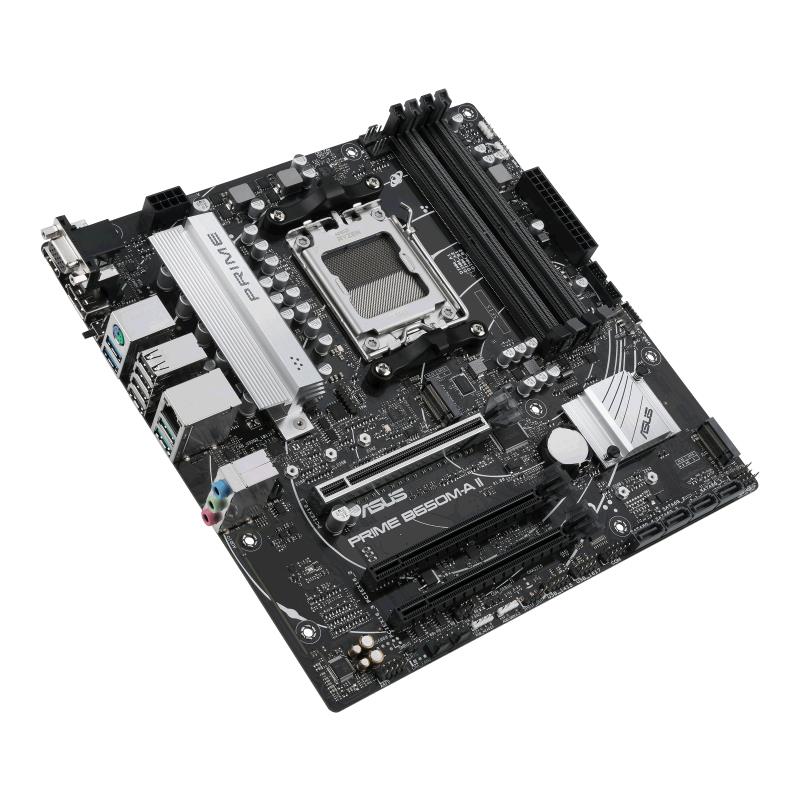

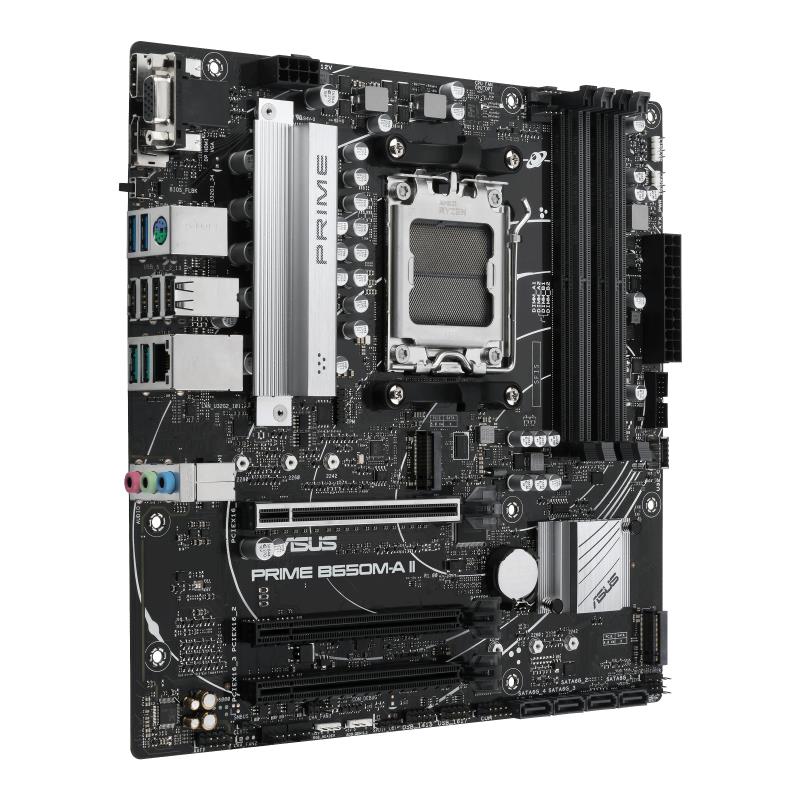

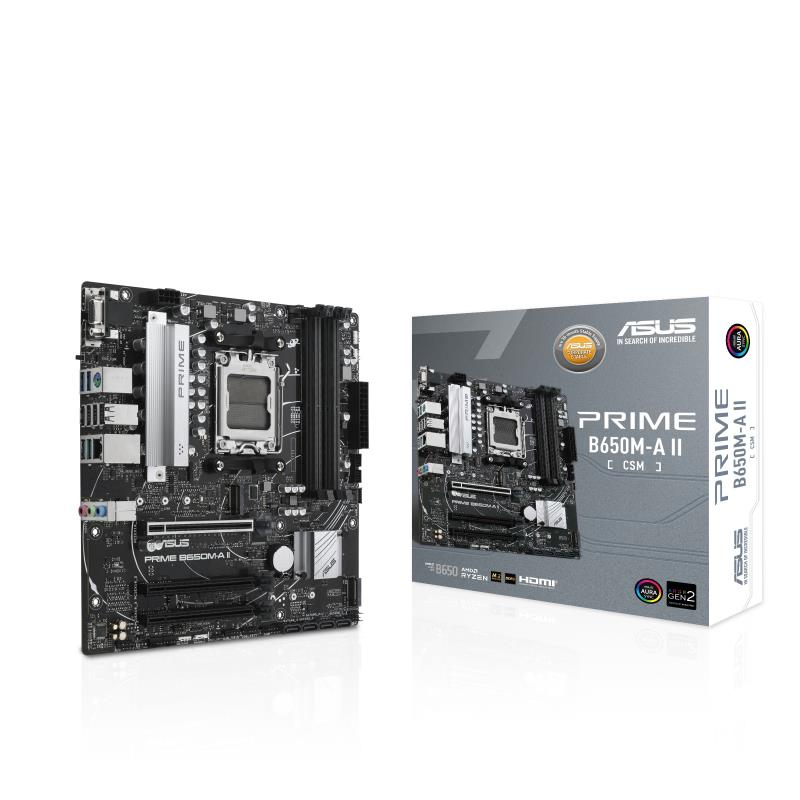

B650M-A II-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A II-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
COOLING
PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE
The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-A AX II, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
For those who want to fly past stock DDR5 speeds, the PRIME B650M-A AX II is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and PRIME B650M-A AX II to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
- AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors

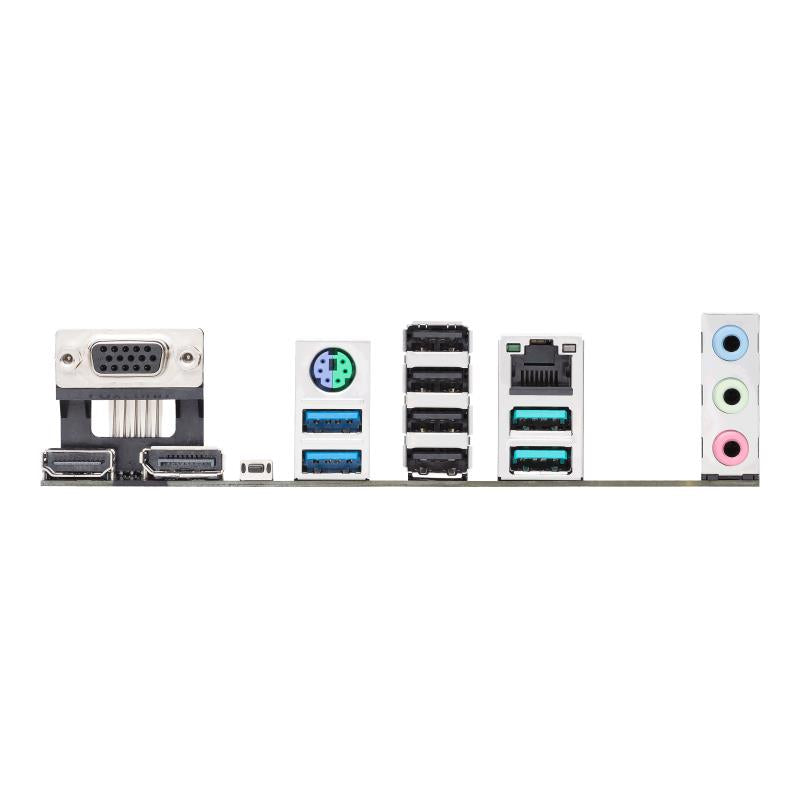

- Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management
