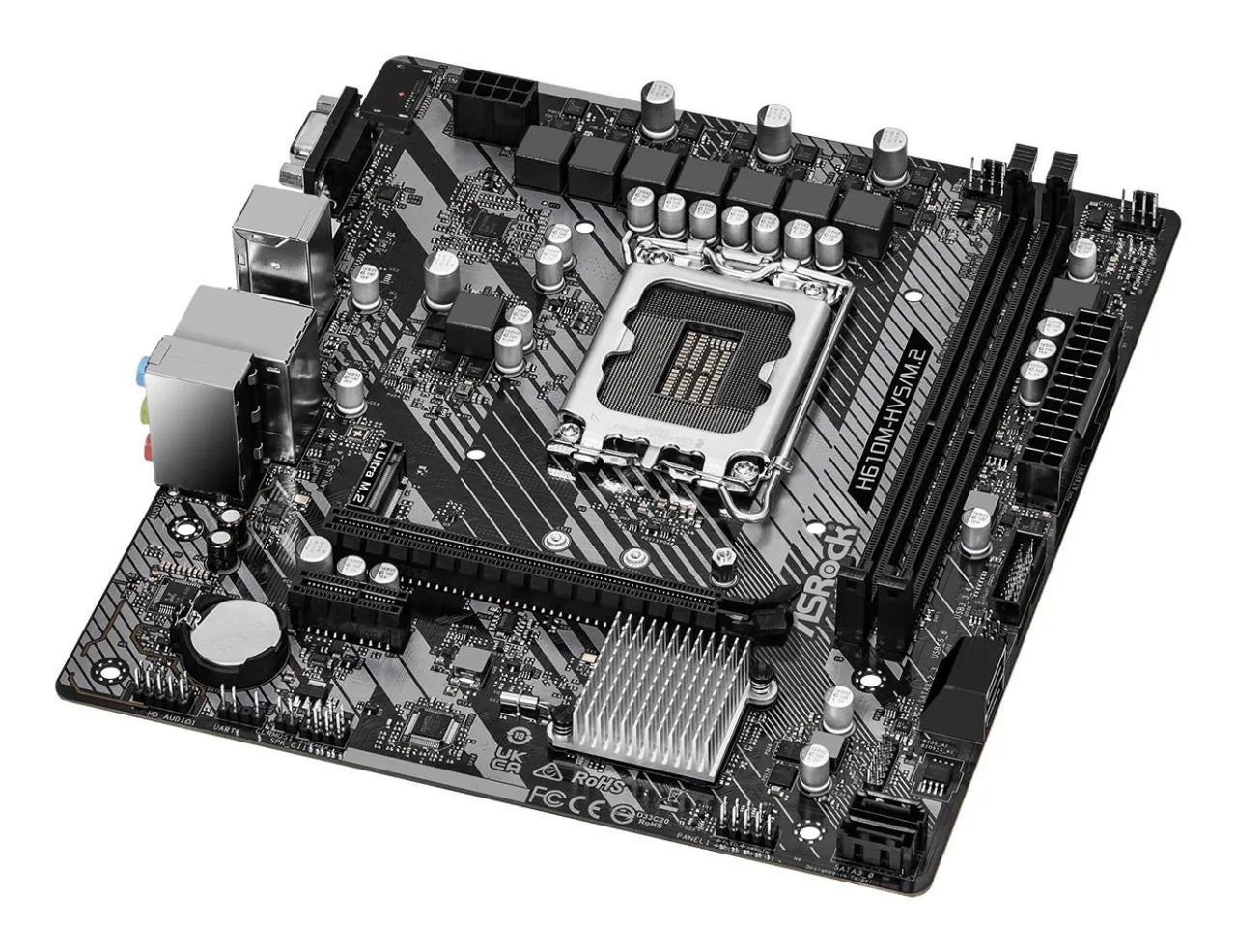

Mainboard|ASROCK|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|H610M-HVS/M.2R2.0
Couldn't load pickup availability
Cena bez PVN 21%: €52,15
Specifikācija
| Vienības kastes platums | 0.24 kg |
| Vienības kastes garums | 0.275 kg |
| Vienības kastes augstums | 0.06 kg |
| Modelis | H610M-HVS/M.2 R2.0 mm |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.00396 cubm |
| Unit Calculated Weight | 0.83 kg |
| Summary | Asrock H610M-HVS/M.2 R2.0. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H kg |
| Compatible processor series | Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7 channels |
| Maximum number of SMP processors | 1 channels |
| Processor manufacturer | Intel channels |
| Processor socket | LGA 1700 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 2 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 2 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| Line-in | Jā pixels |
| Microphone in | Jā pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 pixels |
| Ethernet interface type | Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | Intel H610 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | micro ATX channels |
| Number of M.2 (M) slots | 1 pixels |
| PCI Express x16 (Gen 4.x) slots | 1 pixels |
| BIOS memory size | 128 Mbit |
| Chassis intrusion connector | Jā pixels |
| PCI Express x1 (Gen 3.x) slots | 1 pixels |
| BIOS type | UEFI AMI Mbit |
| PS/2 ports quantity | 1 pixels |
| LAN controller | Realtek RTL8111H pixels |
| Front panel connector | Jā pixels |
| Wake-on-LAN ready | Jā pixels |
| PC health monitoring | CPU/Fan/Voltage/Water cooling channels |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 4 pixels |
| VGA (D-Sub) ports quantity | 1 pixels |
| Wi-Fi | Nē pixels |
| Depth | 188 mm |
| Width | 223 mm |
| Cables included | SATA mm |
| HDCP | Jā MHz |
| Maximum resolution | 4096 x 2160 pixels |
| Headphone outputs | 1 pixels |
| Windows operating systems supported | Windows 10 Education x64/Windows 11 x64 channels |
| Certification | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) channels |
Apraksts
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 7 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1

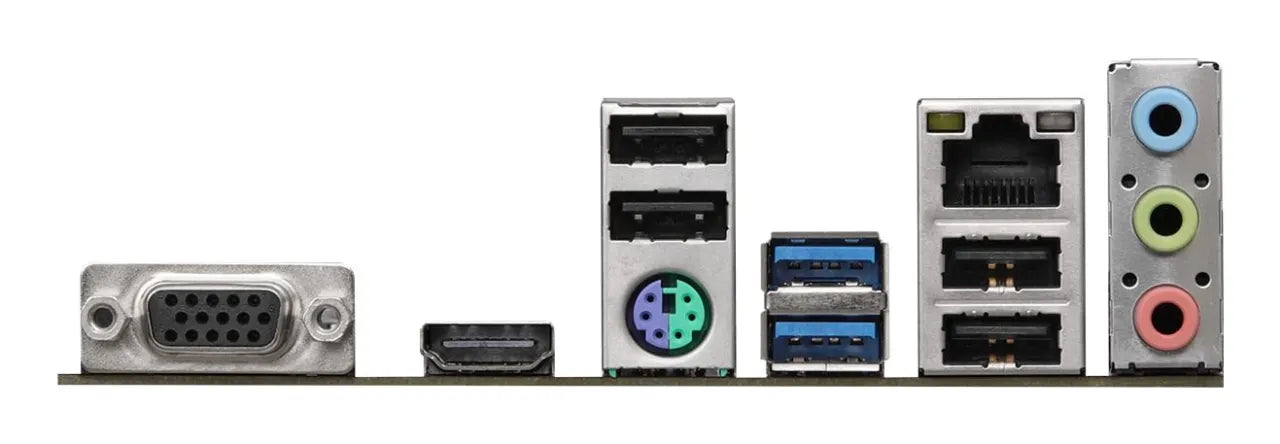

- Graphics Output Options: HDMI, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
