Specifikācija
Primāro portu skaits | 8 |
10Base-T / 100Base-TX / 1000Base-T | 8 |
Konsols | 1 |
SFP | 4 |
Nosūtīšanas kastes daudzums | 10 |
Nosūtīšanas kastes dziļums | 61 cm |
Nosūtīšanas kastes augstums | 34 cm |
Nosūtīšanas kastes svars | 16.2 kg |
Nosūtīšanas kastes platums | 26 cm |
Vienības bruto tilpums | 0.005392 cubm |
Vienības neto svars | 0.5 kg |
Vienības bruto svars | 1.62 kg |
Vienības kastes platums | 0.238 |
Vienības kastes garums | 0.308 |
Vienības kastes augstums | 0.056 |
Apraksts

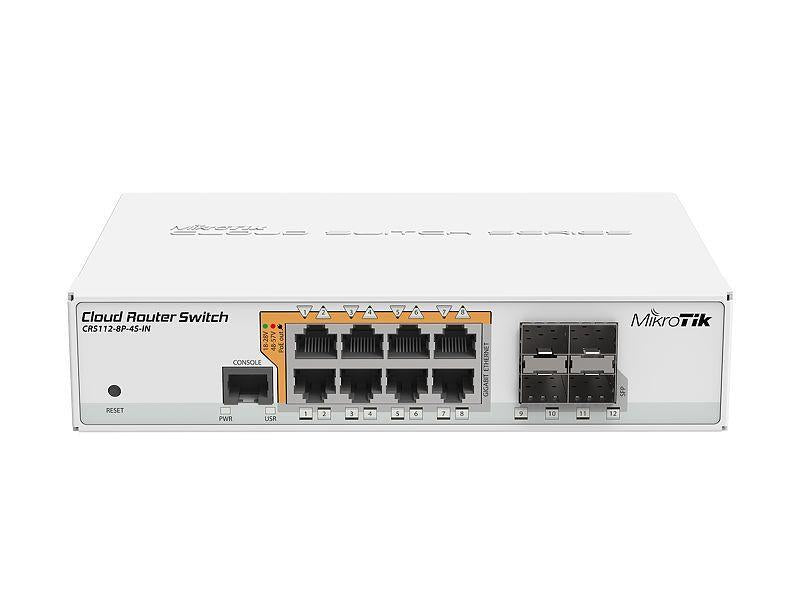

8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5
CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

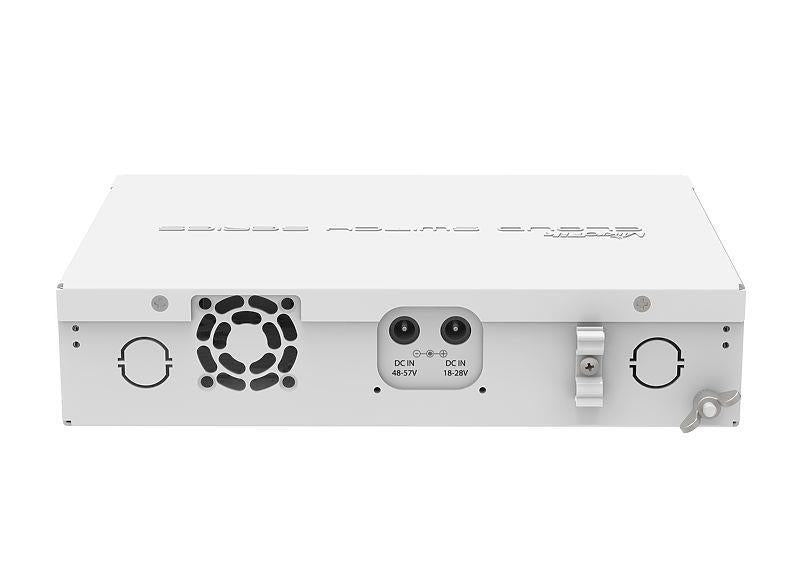

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V.
