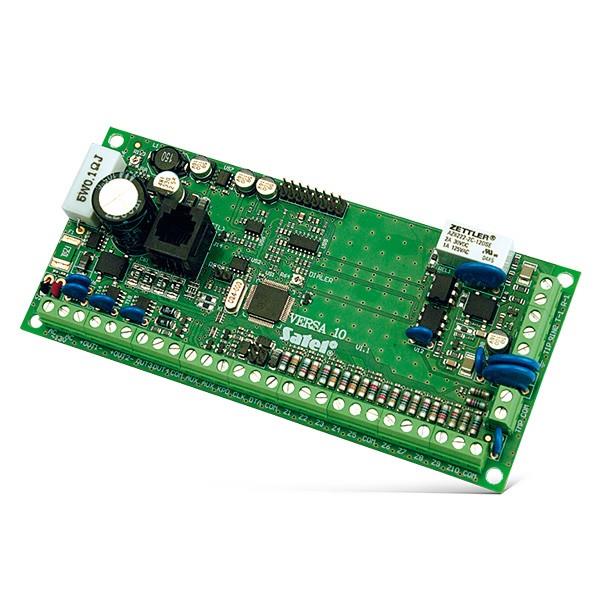

CONTROL PANEL 10-30ZONES/VERSA10 SATEL
Couldn't load pickup availability
Cena bez PVN 21%: €58,39
Specifikācija
| Izmēri | 23.5 x 13 x 5.5cm |
| Nosūtīšanas kastes daudzums | 1 |
| Nosūtīšanas kastes dziļums | 23 cm |
| Nosūtīšanas kastes augstums | 5.5 cm |
| Nosūtīšanas kastes svars | 0.19 kg |
| Nosūtīšanas kastes platums | 13 cm |
| Vienības bruto tilpums | 0.001644 cubm |
| Vienības neto svars | 0.12 kg |
| Vienības bruto svars | 0.19 kg |
| Vienības kastes platums | 0.13 |
| Vienības kastes garums | 0.23 |
| Vienības kastes augstums | 0.055 |
Apraksts
- EN50131 Grade 2 compliance
- 10 zones expandable up to 30:
- NO, NC, EOL, 2EOL/NO, 2EOL/NC zone configurations
- support for vibration and roller shutter detectors
- detectors supervision
- additional tamper input
- 4 up to 12 programmable outputs
- 2 supply outputs
- 2 partitions:
- 3 arming modes for each partition
- arming/disarming by users or timer controlled
- communication bus for keypads, readers and expansion modules
- RS-232 port (RJ type socket) for panel programming built-in telephone dialer for:
- reporting (SIA, ContactID, other)
- personal messaging (8 telephone numbers, 64 text/16 voice messages)
- remote programming (built-in 300 bps modem)
- support for GSM/GPRS communicator:
- SMS/GPRS reporting
- voice/SMS messaging
- support for TCP/IP communicator:
- e-mail messaging
- TCP/IP reporting
- system operation via:
- LCD or LED keypads (up to 6)
- proximity tags/cards (up to 6 readers)
- remote control key fobs
- easy update of firmware for enhancing the panel with new features
- support for 31 user codes:
- 30 standard users
- 1 installer
- individual naming for easy system operation and management
- timers:
- 4 timers with holidays support
- event log with 2047 entries
- automatic diagnostics of basic system components
- built-in 2 A switching mode power supply:
- overload protection
- deep discharge protection
- battery charging supervision
