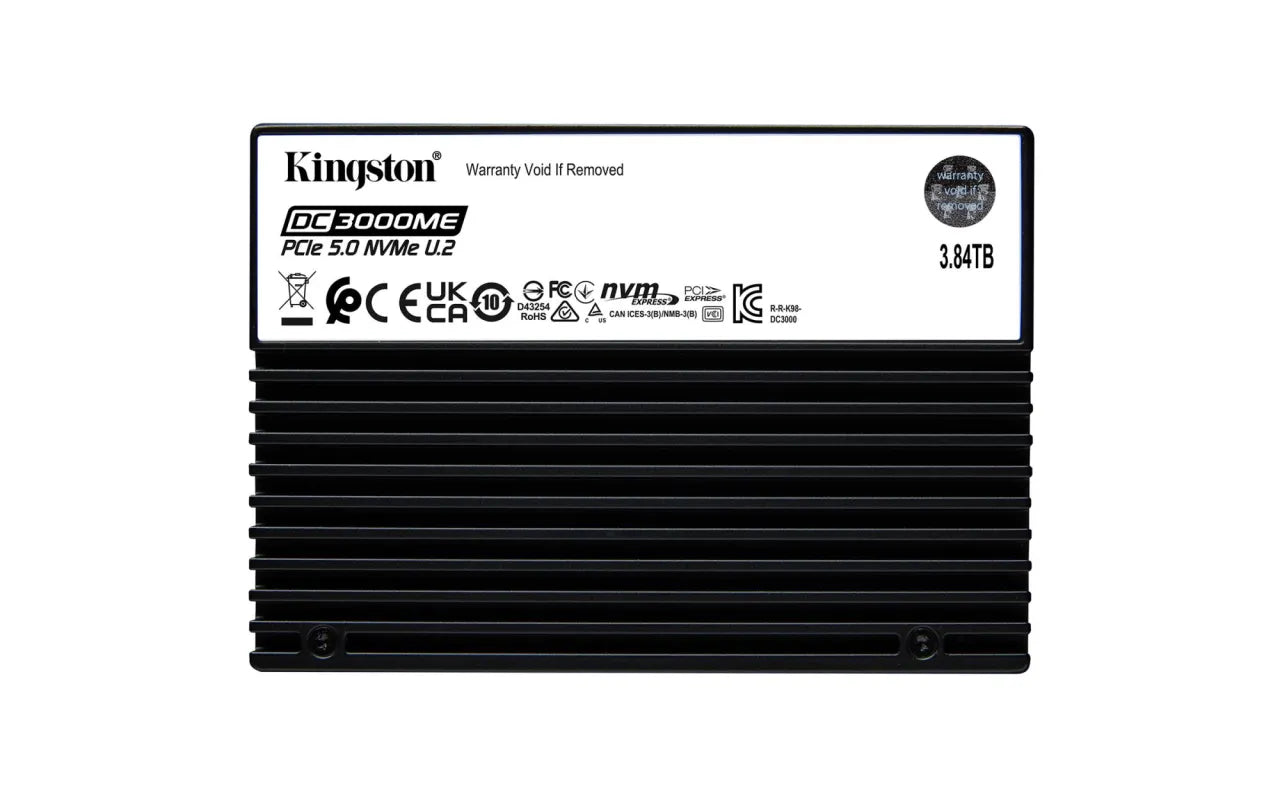

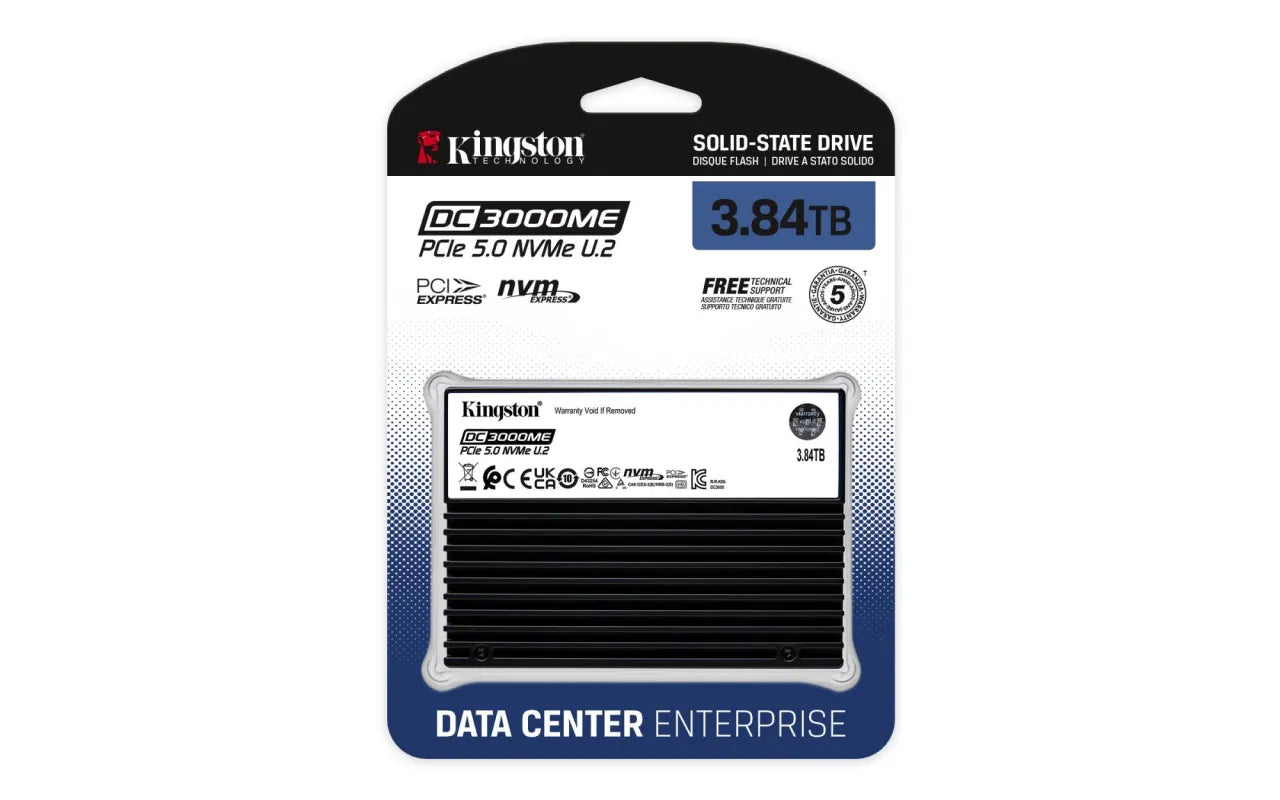

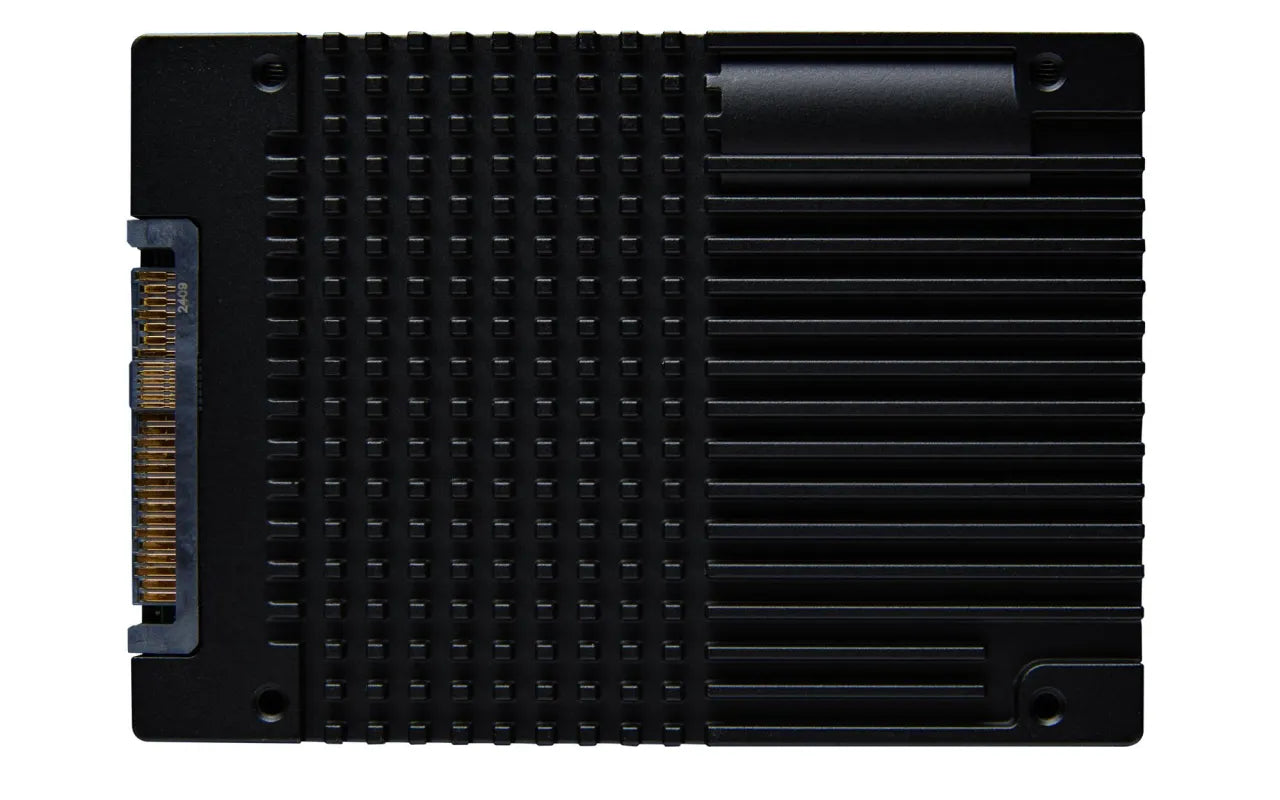

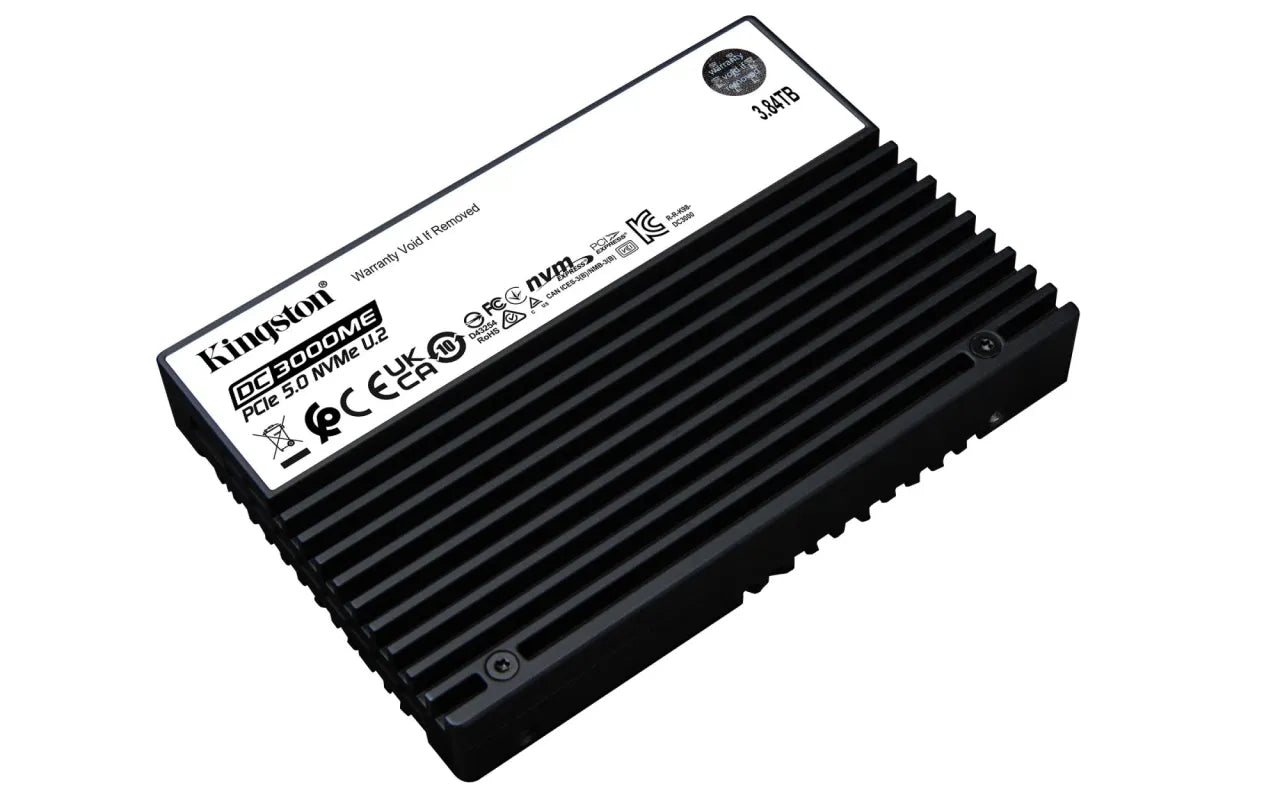

SSD|KINGSTON|SSD series DC3000ME|3.84TB|NVMe|NAND flash technology 3D TLC|Write speed 5800 MBytes/sec|Read speed 14000 MBytes/sec|Form Factor U.2|TBW 7.008 TB|MTBF 2000000 hours|SEDC3000ME/3T8
Couldn't load pickup availability
Cena bez PVN 21%: €1.116,40
Specifikācija
| Vienības kastes platums | 0.13 kg |
| Vienības kastes garums | 0.18 kg |
| Vienības kastes augstums | 0.015 kg |
| Modelis | SEDC3000ME/3T8 pc(s) |
| SSD sērija | DC3000ME pc(s) |
| Units per Shipping Box | 6 pc(s) |
| Unit Calculated Volume | 0.0003267 cubm |
| Unit Calculated Weight | 0.183 kg |
| Summary | Kingston Technology 3.84TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD. SSD capacity: 3.84 TB, SSD form factor: U.2, Read speed: 14000 MB/s, Write speed: 5800 MB/s, Component for: Server kg |
| Units per Pallet | DC3000ME pc(s) |
| Component for | Server kg |
| Hardware encryption | Jā kg |
| Interface | PCI Express 5.0 kg |
| Memory type | 3D eTLC h |
| NVMe | Jā h |
| Random read (4KB) | 2700000 IOPS |
| Random write (4KB) | 300000 IOPS |
| Read latency | 10 µs |
| SSD capacity | 3840 GB |
| SSD form factor | U.2 GB |
| Write latency | 70 µs |
| Operating temperature (T-T) | 0 - 70 °C |
| Mean time between failures (MTBF) | 2000000 h |
| Read speed | 14000 MB/s |
| Write speed | 5800 MB/s |
| Depth | 100.5 mm |
| Height | 14.8 mm |
| Weight | 146.2 g |
| Width | 69.8 mm |
| Market segment | Server kg |
| Power consumption (idle) | 8 W |
| Power consumption (read) | 8.2 W |
| Power consumption (write) | 24 W |
| Security algorithms | 256-bit AES/TCG Opal 2.0 MB/s |
| Package depth | 16.76 mm |
| Package height | 184.15 mm |
| Package weight | 180.44 g |
| Package width | 129.54 mm |
| Non-operating vibration | 10 G |
| Master (outer) case gross weight | 1127.05 g |
| Master (outer) case height | 69.85 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case width | 135.89 mm |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | Malaysia °C |
| Power loss protection | Jā h |
|
|
| * Some of the listed capacity on a flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Guide at kingston.com/flashguide. ** Performance measurement as defined by SNIA Solid State Storage Performance Test Specification Enterprise v1.1; Drive write cache enabled; NVMe power state 0; Sequential workloads measured using FIO with queue depth of 32; Random Read workloads using FIO with queue depth of 128 based on 4K sector size; Random Write workloads measured using FIO with queue depth of 128. Latency values measured with random workloads using FIO, 4KB transfers, queue depth = 1. *** Measurement taken once the workload has reached steady state but including all background activities required for normal operation and data reliability. **** Based on 15.36TB capacity. ***** Total Bytes Written (TBW) & Drives Writes Per Day (DWPD) derived from the JEDEC Enterprise Workload (JESD219A). ****** Limited warranty based on 5 years or when the usage of an NVMe SSD as indicated by Kingston’s implementation of the Health attribute “Percentage Used” reaches or exceeds a normalized value of one hundred (100) as indicated by the Kingston SSD Manager (kingston.com/SSDManager). For NVMe SSDs, a new unused product will show a Percentage Used value of 0, whereas a product that reaches it warranty limit will show a Percentage Used value of greater than or equal to one hundred (100). pc(s) |
Apraksts

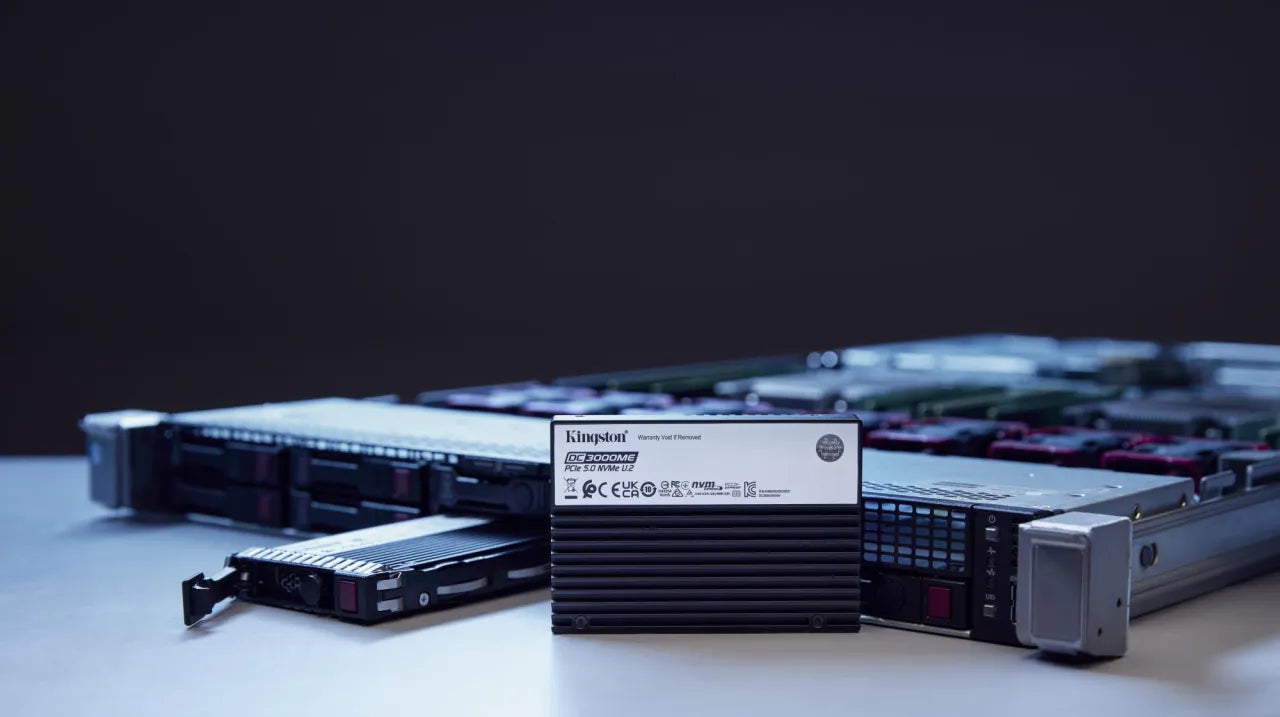

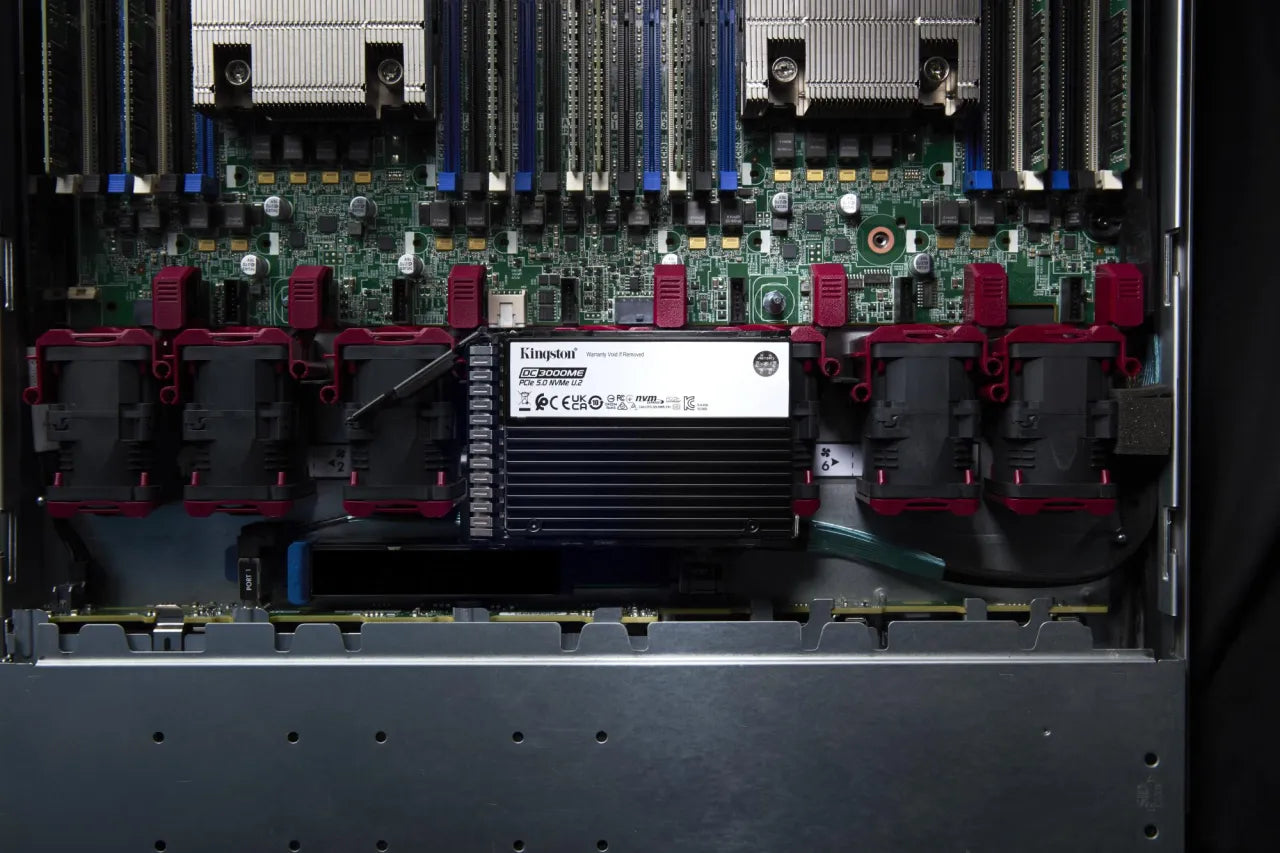

PCIe 5.0 NVMe U.2 for Server Applications
Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward-compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB and 15.36TB* capacities and is backed by Kingston's legendary technical support and a 5-year limited warranty.
Applications and workloads
DC3000ME is ideal for running a wide range of server applications and workloads including:
- AI
- HPC
- Cloud services
- Edge computing
- Software defined storage
- RAID
- General server use
Enterprise PCIe 5.0 performance
Delivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,800,000 read IOPS**.
Optimal storage and efficiency
High capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimized to handle a wide range of server workloads efficiently.
On-board Power Loss Protection (PLP)
Enterprise-class protection to reduce possibility of data loss or corruption on ungraceful power fails including NVMe-MI 1.2b out-of-band management, end-to-end data protection, TCG Opal 2.0.
AES 256-bit encryption
Secure sensitive data with AES 256-bit hardware-based encryption and TCG Opal 2.0./
PCIe 5.0 NVMe U.2 for Server Applications
Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward-compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB and 15.36TB* capacities and is backed by Kingston's legendary technical support and a 5-year limited warranty.
Applications and workloads
DC3000ME is ideal for running a wide range of server applications and workloads including:
- AI
- HPC
- Cloud services
- Edge computing
- Software defined storage
- RAID
- General server use
Enterprise PCIe 5.0 performance
Delivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,800,000 read IOPS**.
Optimal storage and efficiency
High capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimized to handle a wide range of server workloads efficiently.
On-board Power Loss Protection (PLP)
Enterprise-class protection to reduce possibility of data loss or corruption on ungraceful power fails including NVMe-MI 1.2b out-of-band management, end-to-end data protection, TCG Opal 2.0.
AES 256-bit encryption
Secure sensitive data with AES 256-bit hardware-based encryption and TCG Opal 2.0.
- Data Center SSD for Enterprise
- Gen5 PCIe NVMe U.2
- 3.84TB, 7.68TB, 15.36TB
- Up to 14,0000 MB/s read
- Up to 2,800,000 read IOPS
* Some of the listed capacity on a flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Guide at kingston.com/flashguide.
** Performance measurement as defined by SNIA Solid State Storage Performance Test Specification Enterprise v1.1; Drive write cache enabled; NVMe power state 0; Sequential workloads measured using FIO with queue depth of 32; Random Read workloads using FIO with queue depth of 128 based on 4K sector size; Random Write workloads measured using FIO with queue depth of 128. Latency values measured with random workloads using FIO, 4KB transfers, queue depth = 1.
*** Measurement taken once the workload has reached steady state but including all background activities required for normal operation and data reliability.
**** Based on 15.36TB capacity.
***** Total Bytes Written (TBW) & Drives Writes Per Day (DWPD) derived from the JEDEC Enterprise Workload (JESD219A).
****** Limited warranty based on 5 years or when the usage of an NVMe SSD as indicated by Kingston’s implementation of the Health attribute “Percentage Used” reaches or exceeds a normalized value of one hundred (100) as indicated by the Kingston SSD Manager (kingston.com/SSDManager). For NVMe SSDs, a new unused product will show a Percentage Used value of 0, whereas a product that reaches it warranty limit will show a Percentage Used value of greater than or equal to one hundred (100).
