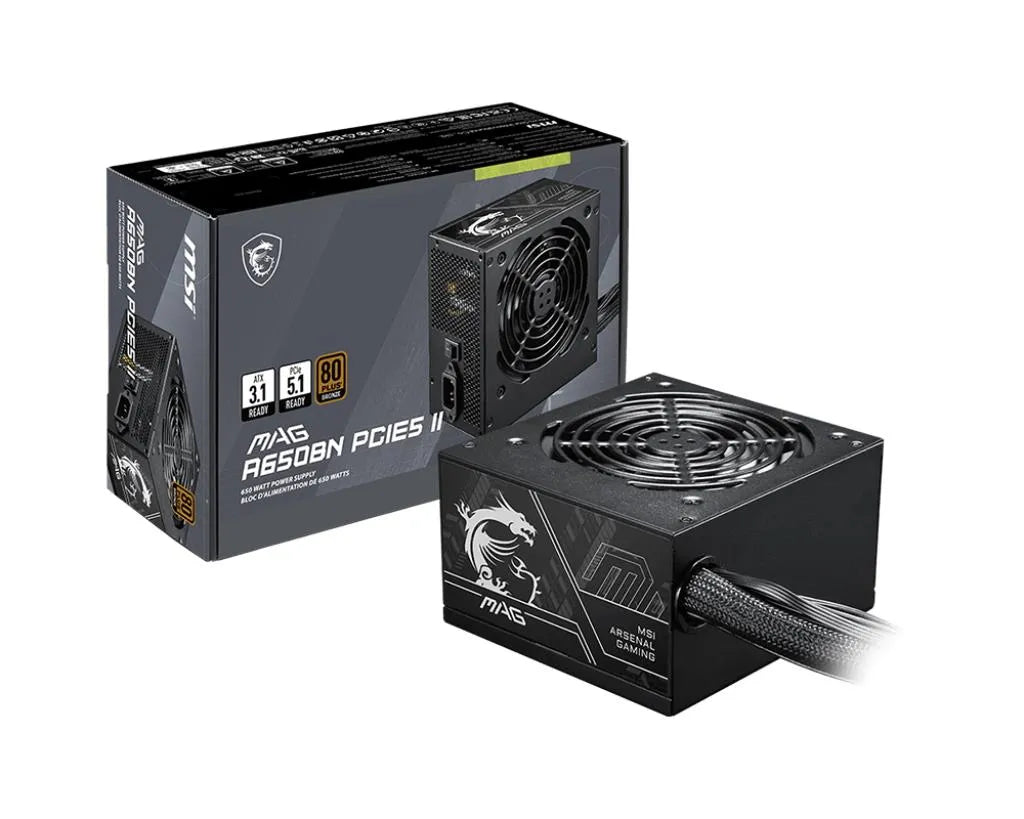

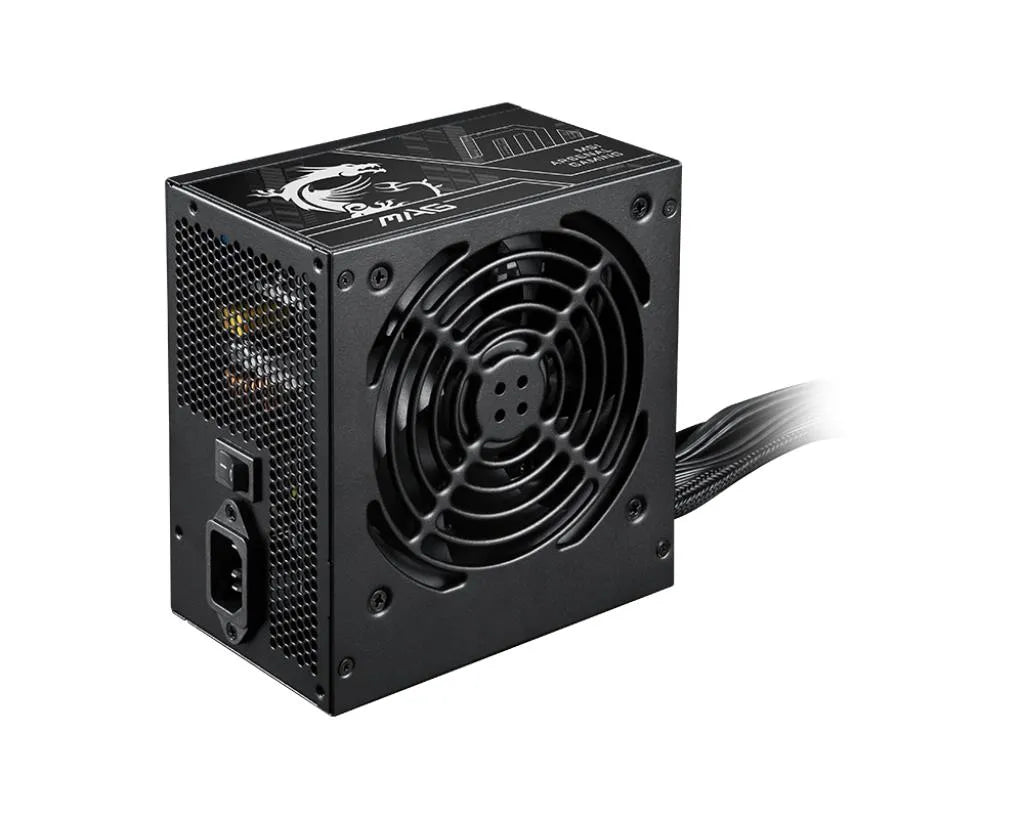

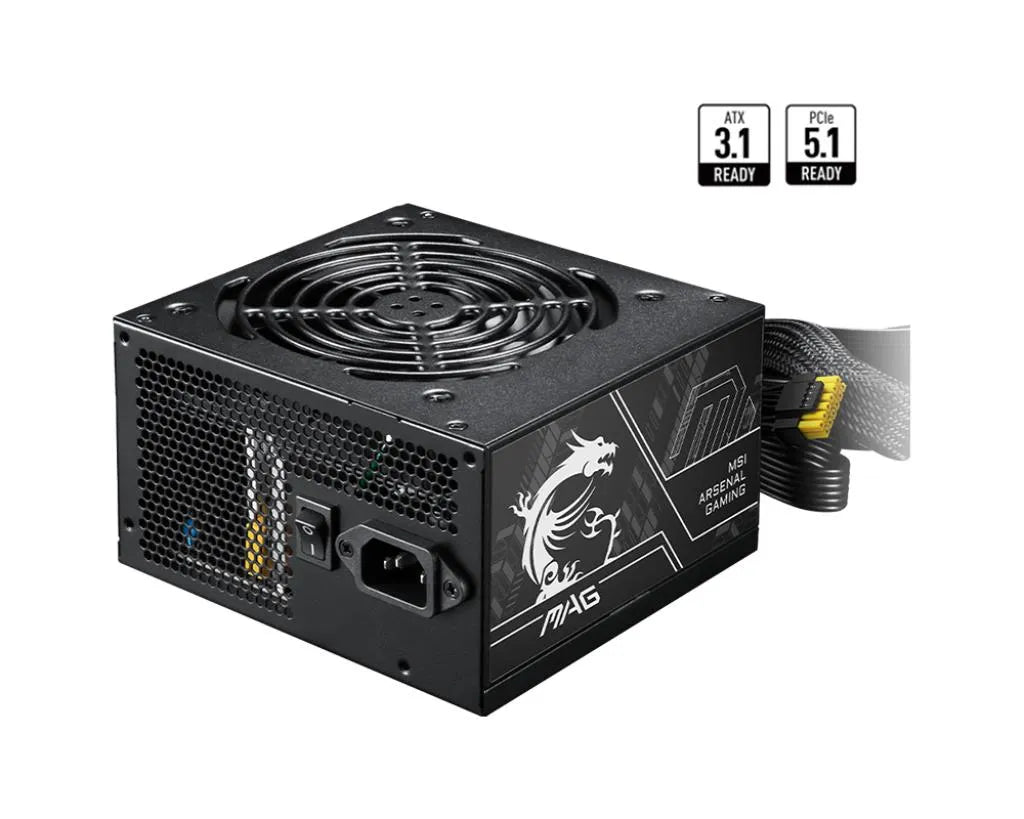

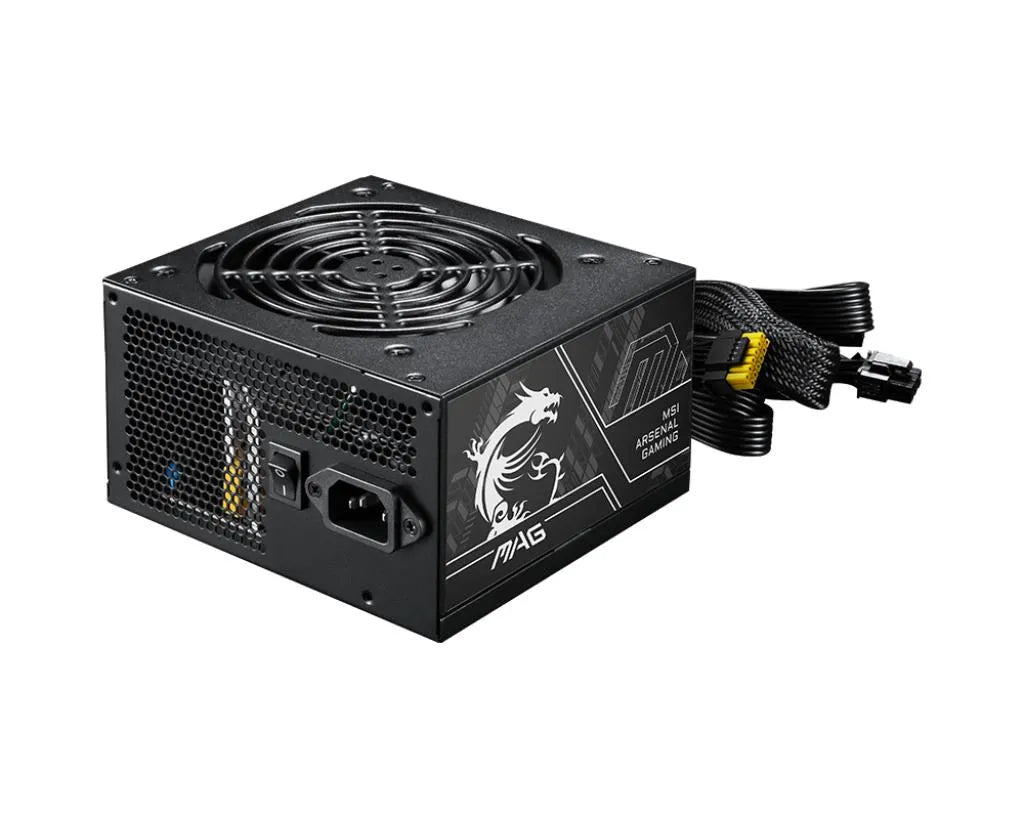

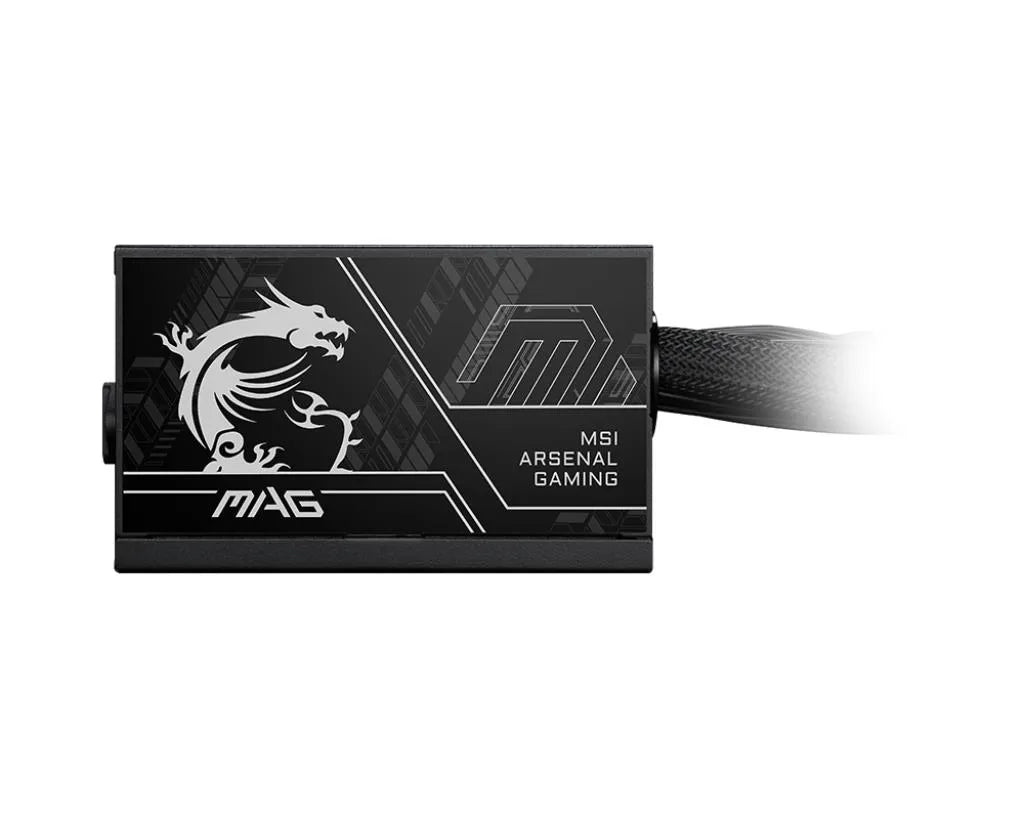

Power Supply|MSI|ATX|PC|100 - 240 V|650 W|MAGA650BNPCIE5II
Couldn't load pickup availability
Cena bez PVN 21%: €59,24
Specifikācija
| Vienības kastes platums | 0.195 kg |
| Vienības kastes garums | 0.293 kg |
| Vienības kastes augstums | 0.115 kg |
| Efektivitāte | 85 % |
| Units per Shipping Box | 4 mm |
| Unit Calculated Volume | 0.008323 cubm |
| Unit Calculated Weight | 2.4 kg |
| Summary | MSI MAG A650BN PCIE5 II. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm kg |
| Units per Pallet | 150 mm |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 0.3 A |
| Max output current (+5Vsb) | 15 A |
| Maximum input current (@220V) | 5 A |
| Total power | 650 W |
| Cabling type | Non-Modular W |
| EPS power connector (4+4 pin) | Jā W |
| Floppy disk drive connector | Nē W |
| Motherboard power cable length | 550 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 3 mm |
| PCI Express power connectors (6+2 pin) | 2 mm |
| 80 PLUS certification | 80 PLUS Bronze mm |
| Power supply unit (PSU) form factor | ATX mm |
| Fan diameter | 120 mm |
| On/off switch | Jā fan(s) |
| Power protection features | Over current/Over power/Over voltage/Short circuit A |
| CPU power connector (4+4 pin) | Jā W |
| Max output current (+12V) | 54 A |
| Maximum input current (@110V) | 10 A |
| Power Factor Correction (PFC) type | Active A |
| ATX power connector (20+4 pin) | Jā W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active mm |
| Product colour | Black fan(s) |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 mm |
| Purpose | PC mm |
| Number of fans | 1 fan(s) |
| EPS power connector (8-pin) | Jā W |
| ATX Power connector (24-pin) | Nē W |
| Fan speed | 500 - 1800 RPM |
Apraksts
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
ATX 3.1 READY
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Dual-color 12V-2x6 cable
The 12V-2x6 cable’s connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.
Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.
POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.
SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.
Alloy Copper Connector Terminals
The cable connectors are made of copper alloy terminals so that thepower supply will be safer when there is a higher surge in current.
PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
connectors
This non-modular power supply equipped with black flat cables, making cable management.
- Dual-color 12V-2x6 Cable
- ATX 3.1 Ready
- PCIe 5.1 Ready (300W)
- 80 PLUS Bronze
- 120mm Fan
- DC to DC power Design
- Active PFC Design
- Industrial level protection with OVP, OCP, SCP, OPP, UVP
