Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|TPS-700S
Regular price
€58,07
Regular price
Sale price
€58,07
Unit price
per
Tax included.
Couldn't load pickup availability
Brand:
CHIEFTEC
Cena bez PVN 21%: €47,99
Regular price
€58,07
Regular price
Sale price
€58,07
Specifikācija
| Vienības kastes platums | 0.105 kg |
| Vienības kastes garums | 0.235 kg |
| Vienības kastes augstums | 0.185 kg |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.0045649 cubm |
| Unit Calculated Weight | 2.07 kg |
| Summary | Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV kg |
| Combined power (+12V) | 648 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 19 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Total power | 700 W |
| Cabling type | Non-Modular W |
| EPS power connector (4+4 pin) | Jā W |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 6 mm |
| PCI Express power connectors (6+2 pin) | 2 mm |
| Peripheral (Molex) power cable length | 150/500 mm |
| SATA power cable length | 150/500 mm |
| 80 PLUS certification | 80 PLUS Bronze mm |
| Power supply unit (PSU) form factor | ATX mm |
| Fan diameter | 120 mm |
| Power protection features | Over voltage/Overheating/Overload/Short circuit/Under voltage A |
| Max output current (+12V) | 54 A |
| Power Factor Correction (PFC) type | Active A |
| Power factor | 0.9 A |
| ATX power connector (20+4 pin) | Jā W |
| PCI Express power cable length | 500 mm |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Product colour | Black fan(s) |
| Depth | 140 mm |
| Height | 87 mm |
| Width | 150 mm |
| Weight | 1740 g |
| Peripheral (Molex) power connectors (4-pin) | 3 mm |
| Purpose | PC mm |
| Number of fans | 1 fan(s) |
| Input current | 10 A |
| Compliance certificates | RoHS fan(s) |
| Package type | Box mm |
| Package weight | 2150 g |
| Certification | ErP, CE, CB, EAC, TUV fan(s) |
| Harmonized System (HS) code | 84733020 g |
| Supported motherboard form factors | ATX mm |
| EPS cable length | 650 mm |
Apraksts

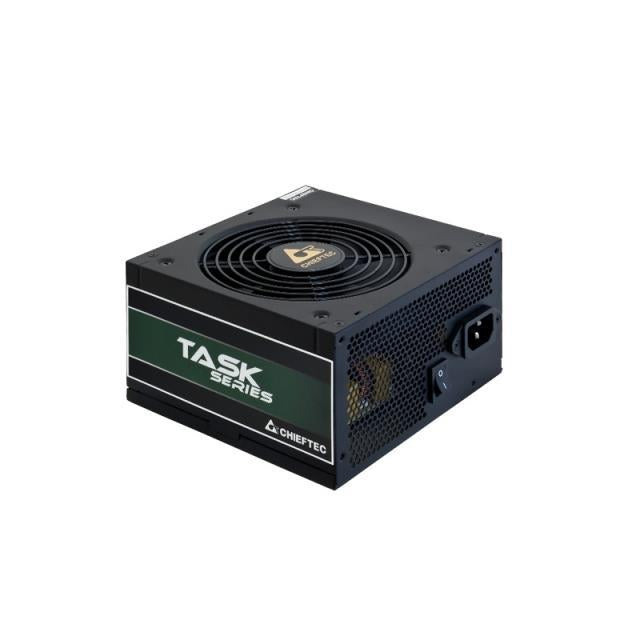

TPS-700S
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
- 80PLUS Bronze certified efficiency
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included
