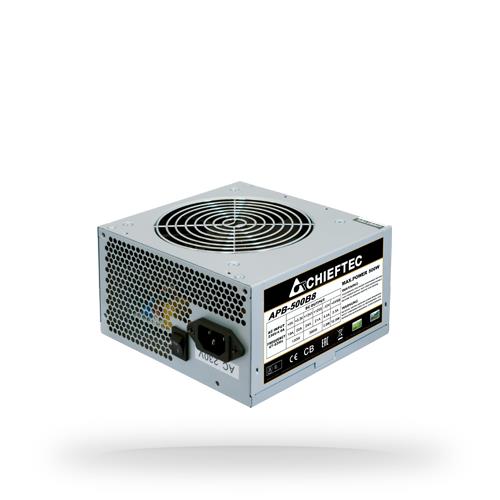

Power Supply|CHIEFTEC|500 Watts|PFC Active|APB-500B8
Regular price
€35,74
Regular price
Sale price
€35,74
Unit price
per
Tax included.
Couldn't load pickup availability
Brand:
CHIEFTEC
Pieejamība:
In stock
SKU:
APB-500B8
Cena bez PVN 21%: €29,54
Regular price
€35,74
Regular price
Sale price
€35,74
Specifikācija
| Vienības kastes platums | 0.09 kg |
| Vienības kastes garums | 0.22 kg |
| Vienības kastes augstums | 0.15 kg |
| Efektivitāte | 80 % |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.00297 cubm |
| Unit Calculated Weight | 1.23 kg |
| Summary | Chieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÜV, EAC kg |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+12V1) | 24 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 19 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Total power | 500 W |
| Cabling type | Non-Modular W |
| Floppy disk drive connector | Jā W |
| Motherboard power connector | 20+4 pin ATX W |
| Number of SATA power connectors | 3 W |
| PCI Express power connectors (6+2 pin) | 1 W |
| 80 PLUS certification | 80 PLUS W |
| ATX version | 2.3 W |
| Power supply unit (PSU) form factor | ATX W |
| Fan diameter | 120 mm |
| On/off switch | Jā fan(s) |
| Max output current (+12V2) | 21 A |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage A |
| Power Factor Correction (PFC) type | Active A |
| Power factor | 0.9 A |
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| Cooling type | Active W |
| Product colour | Silver fan(s) |
| Depth | 140 mm |
| Height | 87 mm |
| Width | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 W |
| Purpose | PC W |
| Number of fans | 1 fan(s) |
| Input current | 4 A |
| Compliance certificates | RoHS fan(s) |
| Certification | CE, CB, TÜV, EAC fan(s) |
| Harmonized System (HS) code | 84733020 mm |
| EPS power connector (8-pin) | Nē W |
Apraksts
The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it’s the VALUE choice!
