Regular price
€77,06
Regular price
Sale price
€77,06
Specifikācija
| Vienības kastes platums | 0.22 kg |
| Vienības kastes garums | 0.25 kg |
| Vienības kastes augstums | 0.1 kg |
| Units per Shipping Box | 1 % |
| Unit Calculated Volume | 0.0055 cubm |
| Unit Calculated Weight | 2.54 kg |
| Summary | Chieftec GDP-750C. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Fan diameter: 14 cm, Number of fans: 1 fan(s). Width: 160 mm, Depth: 150 mm, Height: 87 mm kg |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 2.5 W |
| Max output current (+12V1) | 62 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Total power | 750 W |
| Cabling type | Semi-Modular W |
| Motherboard power connector | 20+4 pin ATX W |
| Number of SATA power connectors | 8 W |
| PCI Express power connectors (6+2 pin) | 4 W |
| ATX version | 2.3 W |
| Power supply unit (PSU) form factor | PS/2 W |
| Fan diameter | 140 mm |
| Fan location | Top mm |
| Power protection features | Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage A |
| Power Factor Correction (PFC) type | Active A |
| Floppy drive power connector | 1 W |
| Power factor | 0.9 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| Product colour | Black fan(s) |
| Depth | 150 mm |
| Height | 87 mm |
| Width | 160 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 W |
| Purpose | PC W |
| Number of fans | 1 fan(s) |
| Harmonized System (HS) code | 84733020 mm |
| EPS power connector (8-pin) | Jā W |
| Frequency tolerance | 90 % |
Apraksts

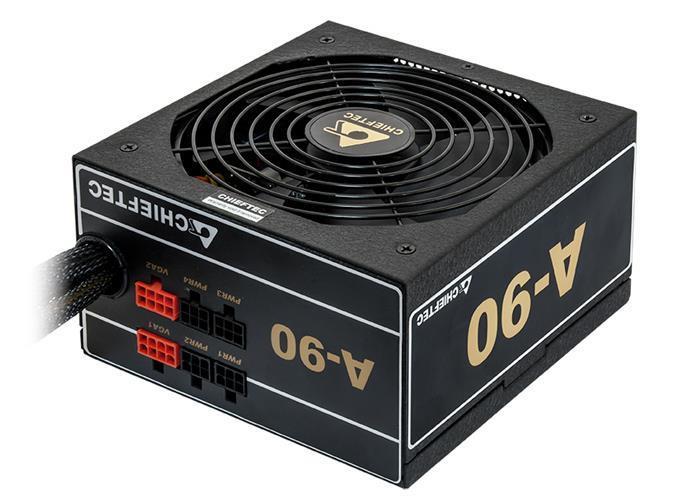

Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.
